· Integrated automatic uncoiling, leveling, cutting, and stacking in one production line
· Multi-gantry structure – multiple beams processed simultaneously for higher throughput
· Designed for continuous coil-fed sheet metal cutting
· Optional fully enclosed or open-type configuration
· Built-in rolling cutting table for smooth material feeding and positioning
Laser power: 1.2kw-12kw
| Model | 4015GU |
| Working Area | 4000 × 1500 mm - 6000 × 2000 mm |
| Laser Power | 1.5kw – 12kw |
| Laser Source | Raycus / Max / RECI / IPG |
| Laser Head | BOCI / RAYTOOLS |
| Control System | FSCUT |
| Motor & Drivers | DELTA / Fuji / Yaskawa |
| Positioning Accuracy | ±0.03 mm |
| Re-positioning Accuracy | ±0.02 mm |
| Cutting Speed | 80 m/min |
| Cooling Method | Water cooling |
| Laser Type | Fiber |
| Gross Weight | 8–10 tons |

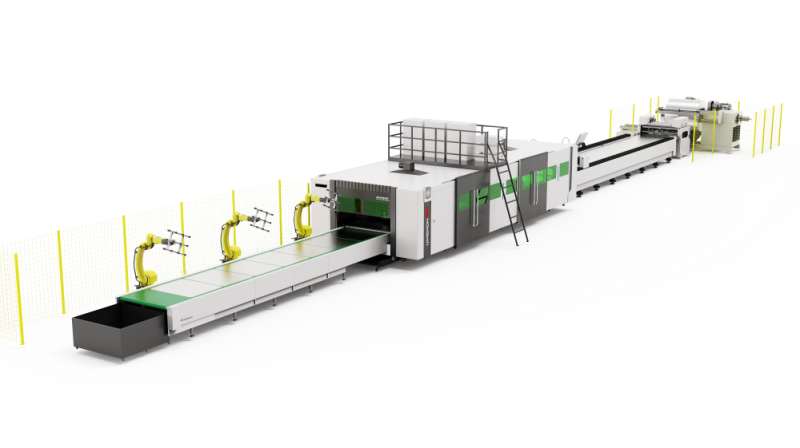

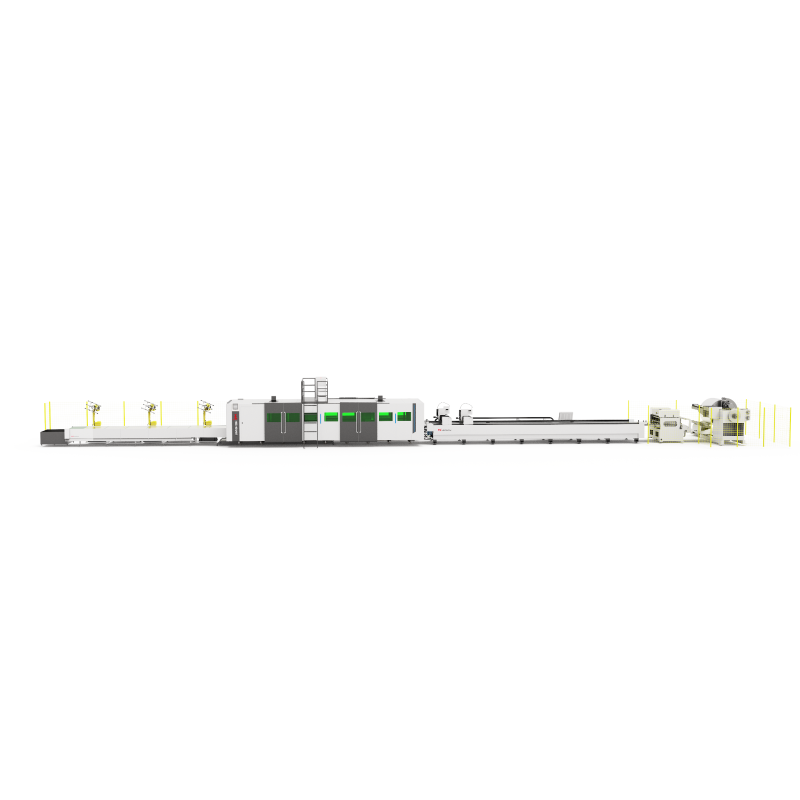

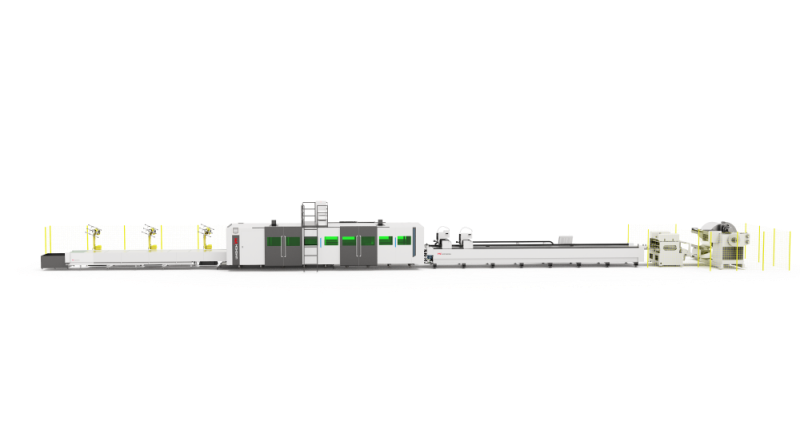

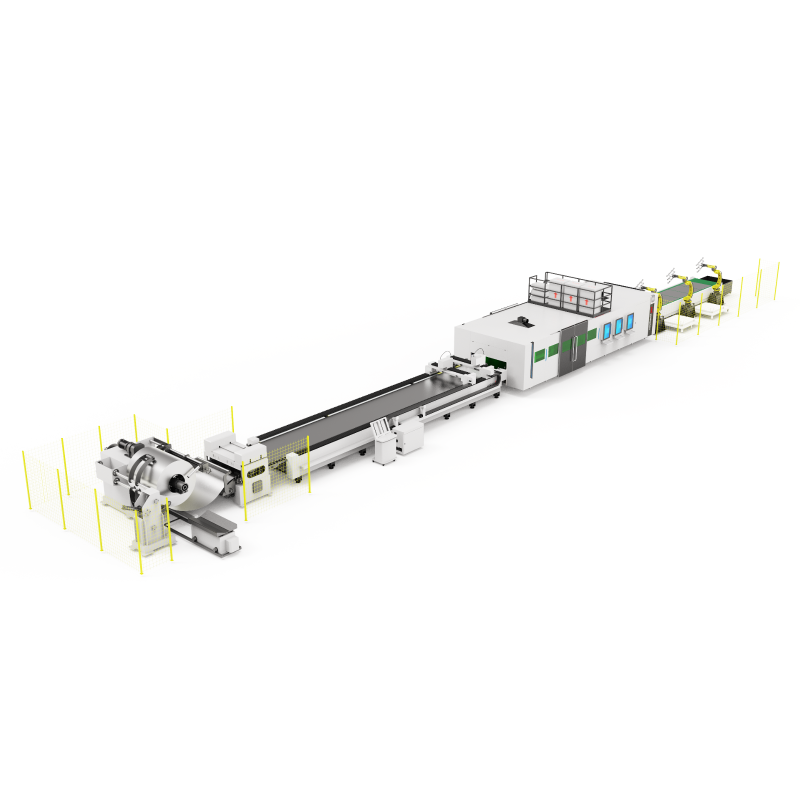

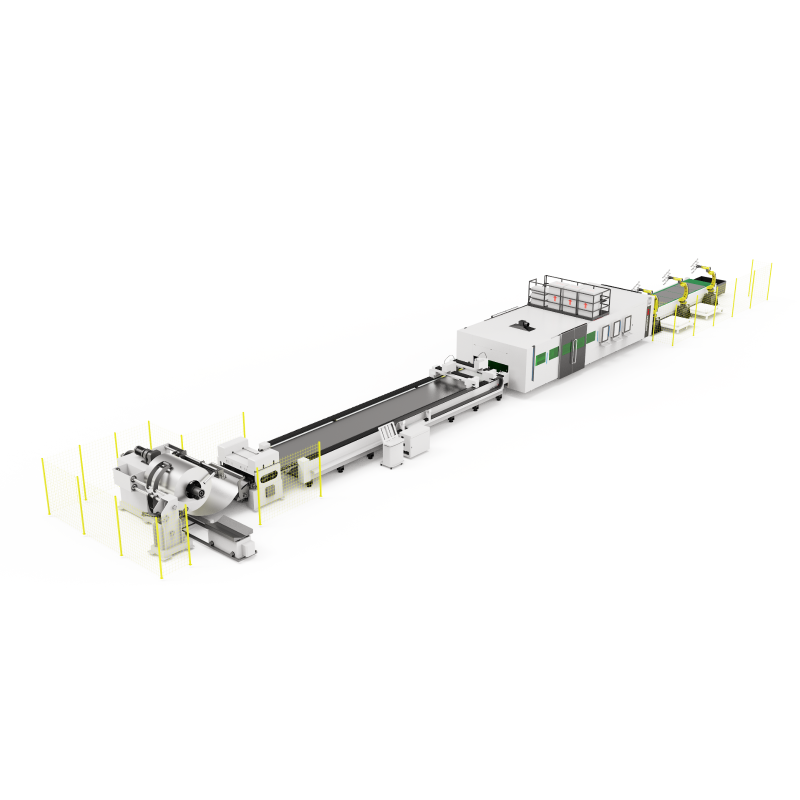

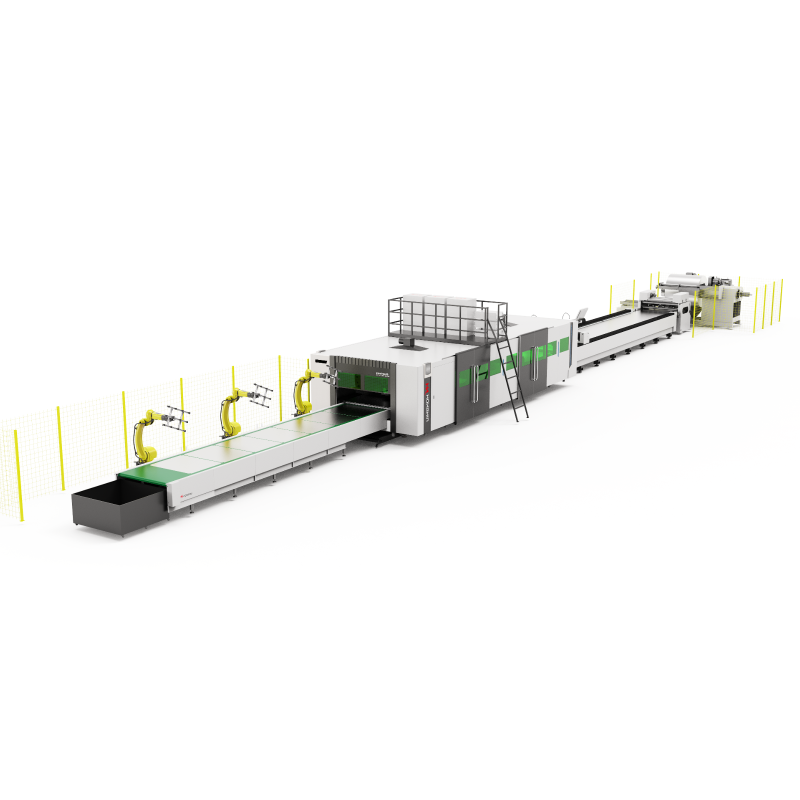

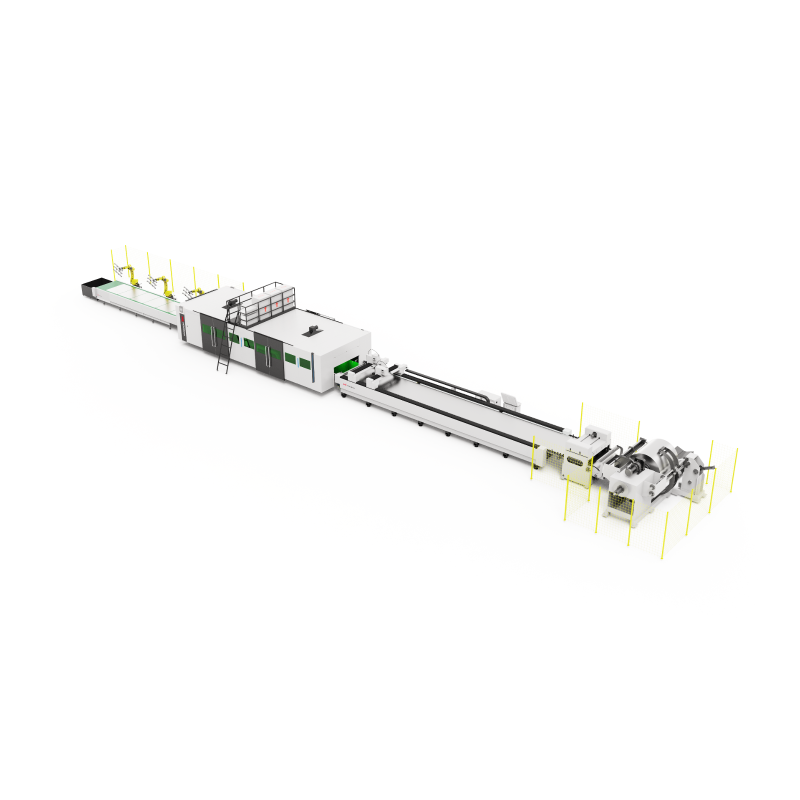

The Multi-Gantry Automatic Uncoiling Fiber Laser Cutting Machine is designed for high-efficiency, continuous coil-fed sheet metal processing. By integrating uncoiling, leveling, laser cutting, and material receiving into a single automated line, it significantly reduces labor costs while maximizing productivity.
The multi-gantry design allows multiple cutting beams to work simultaneously, making it an ideal solution for mass production environments requiring stable, high-speed, and uninterrupted cutting operations.
This series supports laser power up to 12kw, optimized for cutting thin metal sheets with thicknesses from 1–3 mm. The gantry double-drive transmission system ensures smooth motion, high acceleration, and consistent cutting accuracy during continuous coil processing.
The built-in rolling bed minimizes material friction, ensuring smooth feeding and precise cutting alignment.
Applicable Materials:
Processing Capabilities:
 |
 |
 |
 |
| Aerospace Industry | Automotive Industry | Furniture & Decoration | Metal Fabrication Machinery |
| Pre-Assembly Inspection | Precision Machining | Vibration & Natural Aging |
| Each machine component undergoes precise measurement of guide rail straightness and geometric accuracy. Altimeters verify linear dimensions to ensure every part meets design standards. | High-speed rough machining removes burrs and excess material, followed by fine processing for smooth, flat surfaces that ensure long-term cutting precision. | Residual internal stress is released through vibration and natural thermal cycles. This process enhances structural rigidity, stability, and dimensional accuracy of the machine bed. |
| Assembly Process | Welding & Structural Strength | Final Inspection & Testing |
| Guide rails and gear racks are installed and calibrated by skilled technicians using precision tools, ensuring smooth transmission and stable machine performance. | CO₂ shielded welding guarantees firm, defect-free joints, improving overall frame strength, durability, and cutting stability. | Dynamic performance tests check positioning accuracy, repeatability, and micro displacement precision. Interferometers compensate for any rack errors, ensuring superior cutting accuracy. |
