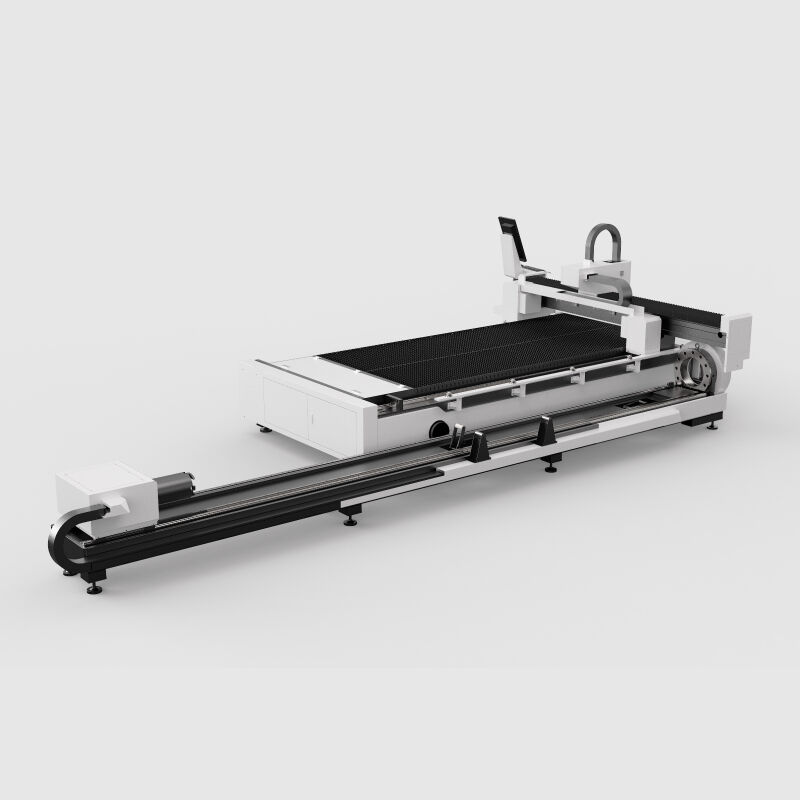

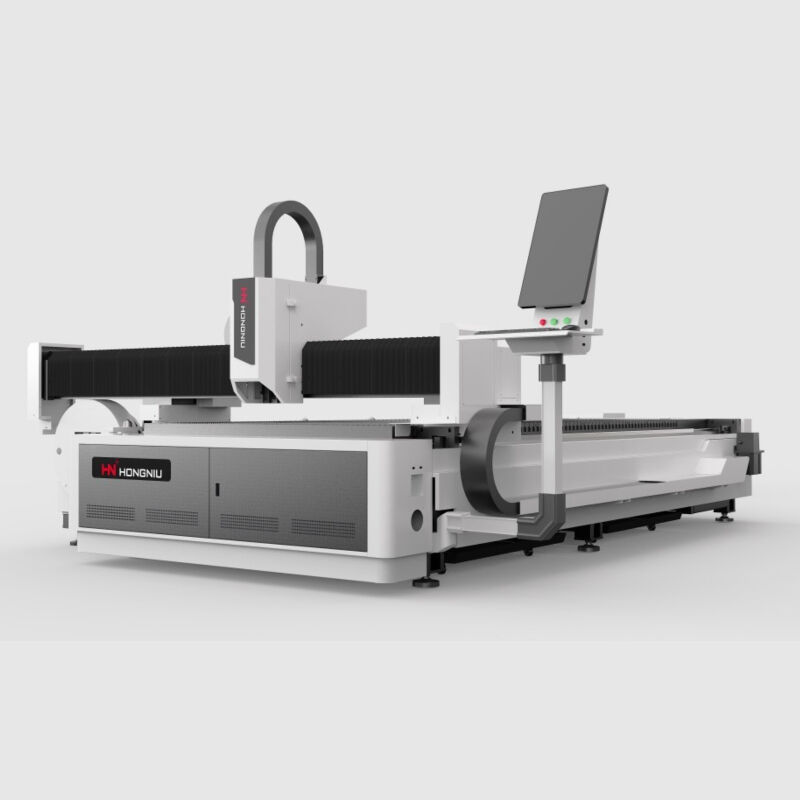

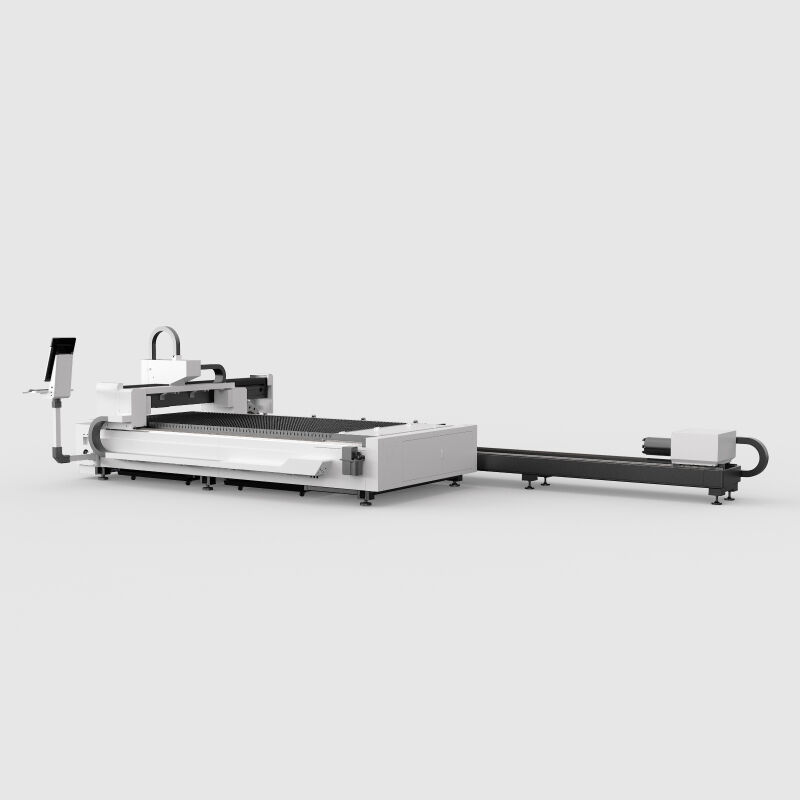

3015LR Plate and Tube Integrated Fiber Laser Cutting Machine

3015LR Plate and Tube Integrated Fiber Laser Cutting Machine

· One machine dual-use – intelligent switching between plate and tube cutting without equipment replacement.
· Dual platforms – independent plate and tube zones to avoid material interference and increase efficiency.
· Cantilever control platform – saves space and provides modern aesthetics.
· Advanced dust removal – dual air ducts with large apertures for smoke-free cutting.
· High-rigidity bed – honeycomb carbon steel structure and reinforced beam prevent vibration during cutting.

Laser power: 1.5kw-12kw

Introduction

Specifications：

Model	3015LR
Working Area	3000×1500 mm
Laser Power	1.5–12kw
Tube Chuck Diameter	160 mm
Laser Source	Raycus / Max / RECI / IPG
Laser Head	BOCI / RAYTOOLS
Motor & Drivers	DELTA / Fuji / Yaskawa
Control System	FSCUT
Positioning Accuracy	±0.03 mm
Re-positioning Accuracy	±0.02 mm
Cutting Speed	80 m/min
Cooling Method	Water cooling
Machine Size	8400×3600×1900 mm
Gross Weight	2800 kg

Description：

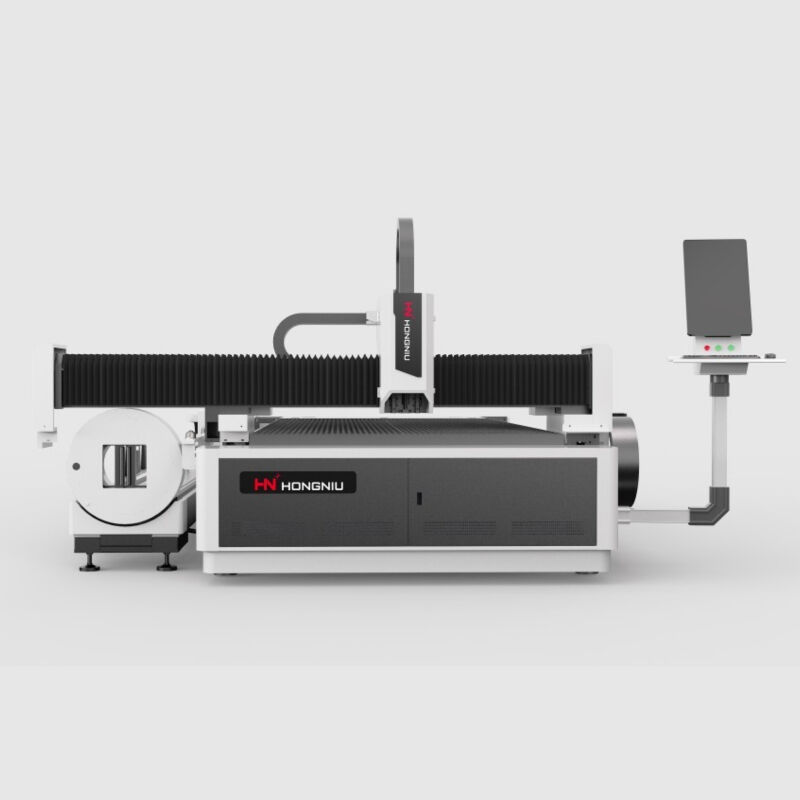

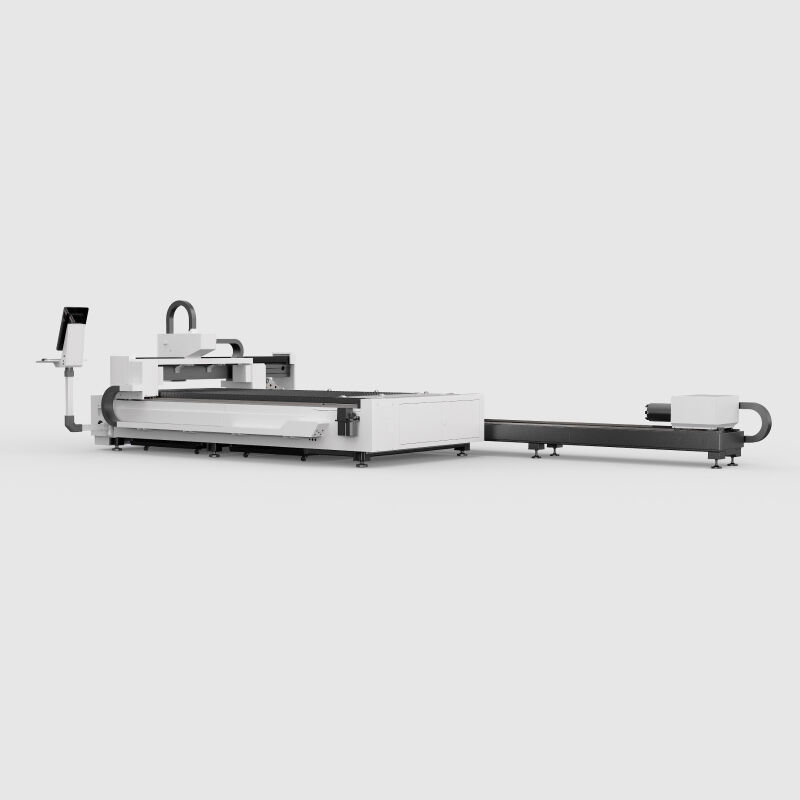

Plate and Tube Integrated Fiber Laser Cutting Machine – LR Series

The LR Series is designed for enterprises requiring both sheet and tube cutting in one machine. Its dual-platform design allows simultaneous independent operation for plates and tubes, ensuring efficiency, precision, and operational safety.

Integrated High-Rigidity Bed & Gantry Structure

The honeycomb carbon steel bed with reinforced beam prevents vibration during cutting, while the gantry double-drive system ensures smooth motion and precise cutting of sheets and tubes.

Dual Platforms for Efficiency

Two independent work zones allow concurrent plate and tube processing, maximizing throughput for industrial production.

Advanced Dust & Smoke Management

Dual air duct partition extraction ensures smoke-free operation in the active cutting zone while other areas remain inactive, maintaining a clean and safe workshop.

User-Friendly & Efficient Operation

Cantilever control platform saves space, and access doors on both sides provide convenient maintenance. Optimized layout of control systems ensures smooth workflow.

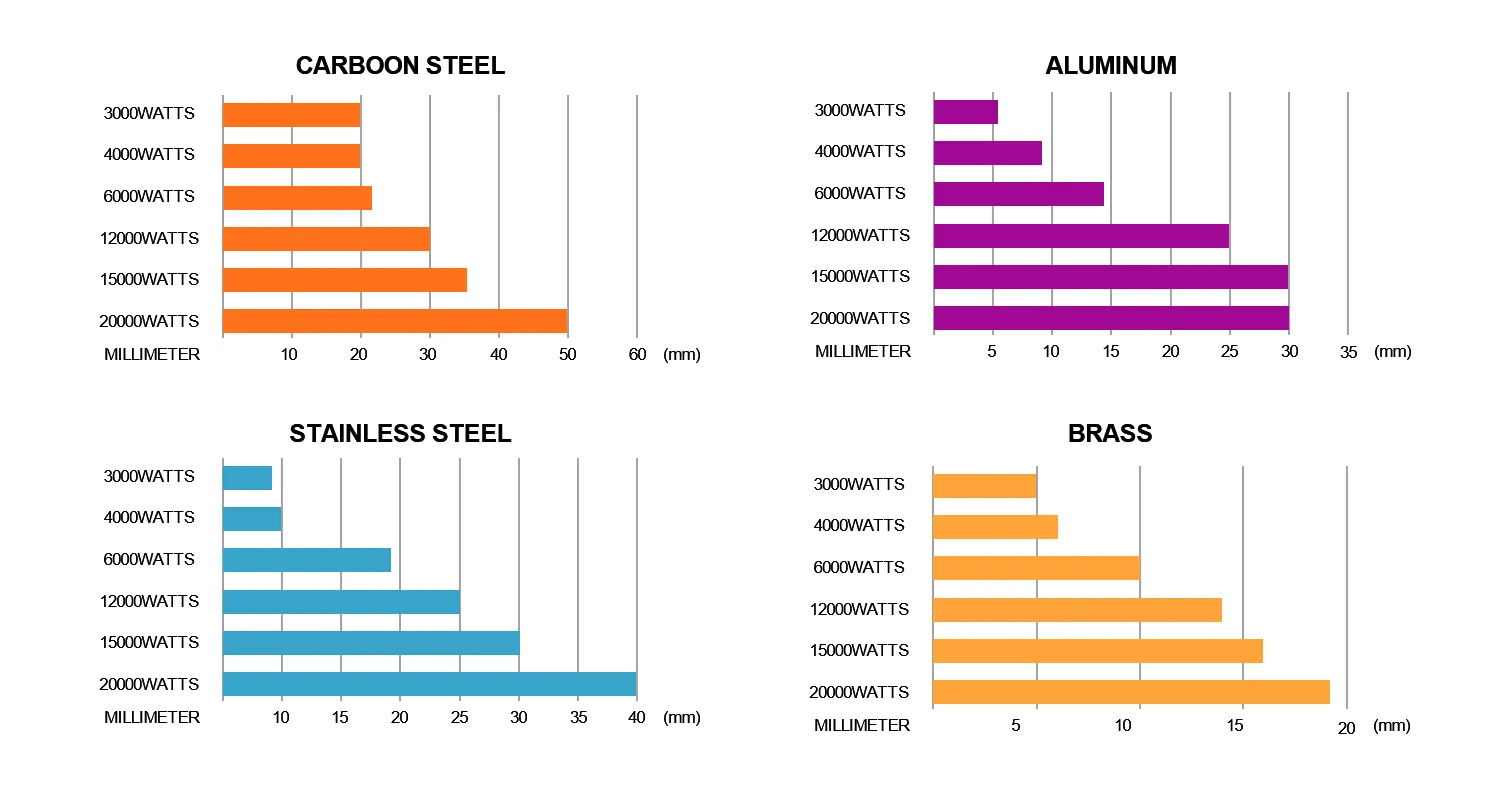

Cutting Parameters：

Cutting Samples：

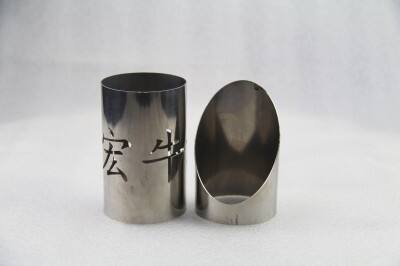

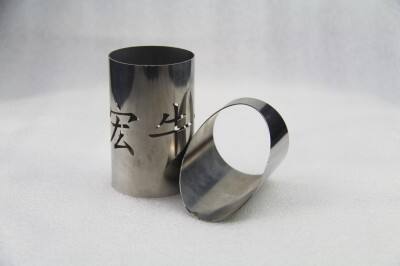

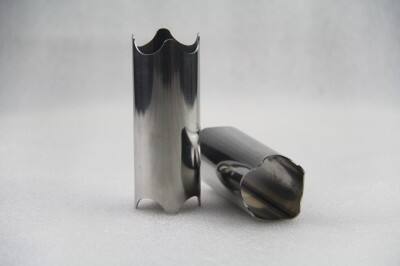

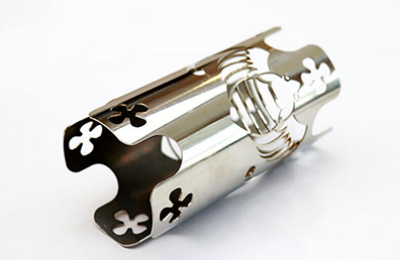

切割样品 (1).png 切割样品 (2).jpg 切割样品 (3).jpg 切割样品 (4).jpg

High-Quality Components for Reliable Performance

Laser Source: Raycus, Max, RECI, or IPG for stable high-power cutting.
Laser Head: BOCI / RAYTOOLS with automatic focusing, anti-collision design, and intelligent monitoring.
Motors & Drivers: DELTA, Fuji, or Yaskawa for precise motion and stability.
Electrical Components: Schneider and Omron for safe, reliable operation.
Control System: FSCUT supports CAD/DXF, multi-file processing, and one-stroke flying cuts.
Cooling: Water chiller system protects both laser head and source, with over-temperature alarm.
Automatic Lubrication: Programmable frequency and volume to extend machine lifespan.

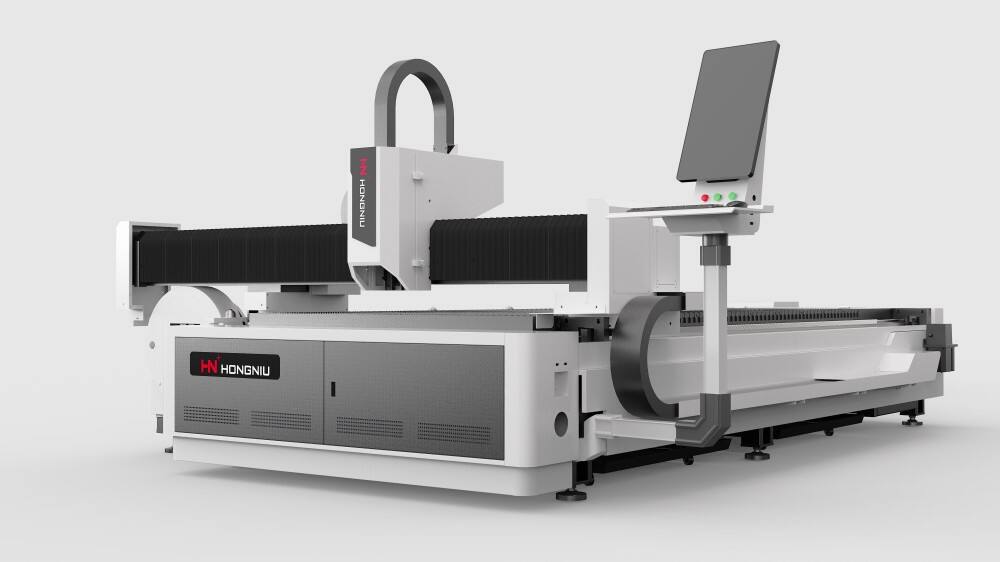

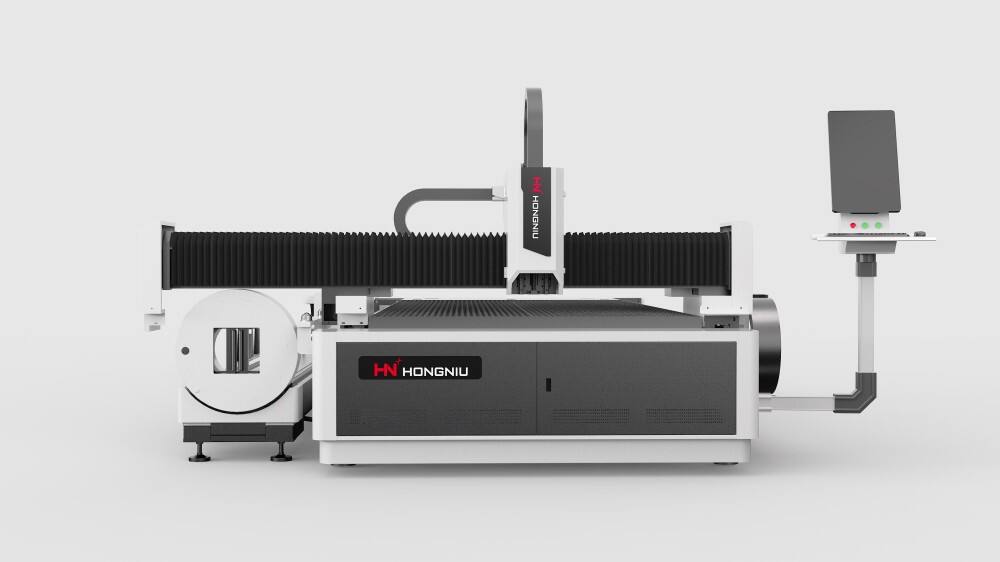

板管一体 3015lr24新款.41(1)(1).jpg 板管一体 3015lr24新款.42(1)(1).jpg

Specifications and Performance

The LR Series offers working areas from 3000×1500 mm to 6000×2500 mm, with laser power up to 12kw, capable of cutting sheet thicknesses 0–15 mm and tubes of varying diameters.

The gantry double-drive structure, reinforced beam, and high-speed servo motors ensure stable, precise, and high-speed cutting suitable for industrial production.

Applications and Versatility

Materials:

Stainless Steel, Carbon Steel, Aluminum, Brass, Copper, Galvanized Sheet, Tubes

Industries:

Automotive & Aerospace
Engineering Machinery
Electronics & Home Appliances
Advertising & Decorative Metalwork
Panel Beating & Metallurgical Equipment

Applications：

Dual-use plate and tube cutting
High-volume sheet and tube production
Fabrication of industrial frames, enclosures, and piping components
Signage, decorative panels, and metal artwork
Efficient cutting with minimal material waste

Application Industry Scenario Diagram


Aerospace Industry	Automotive Industry	Furniture & Decoration	Metal Fabrication Machinery

Competitive Advantage:

Dual-Use Machine: Intelligent switching between plate and tube cutting.
Dual Platforms: Maximize throughput and efficiency.
Cantilever Control Platform: Space-saving and ergonomic.
High-Rigidity Bed & Beam: Prevents table vibration during cutting.
Advanced Dust Extraction: Dual air ducts for precise smoke removal.
Laser Power Range: 1.5kw–12kw suitable for diverse materials and thicknesses.
Easy Operation & Maintenance: Optimized layout with access doors.
Premium Components: Raycus/IPG lasers, BOCI/RAYTOOLS heads, FSCUT control, Schneider/Omron systems.
Versatile Material Capability: Handles sheets and tubes with precision and minimal waste.

Quality Inspection & Manufacturing Process：

Pre-Assembly Inspection	Precision Machining	Vibration & Natural Aging
Each machine component undergoes precise measurement of guide rail straightness and geometric accuracy. Altimeters verify linear dimensions to ensure every part meets design standards.	High-speed rough machining removes burrs and excess material, followed by fine processing for smooth, flat surfaces that ensure long-term cutting precision.	Residual internal stress is released through vibration and natural thermal cycles. This process enhances structural rigidity, stability, and dimensional accuracy of the machine bed.
Assembly Process	Welding & Structural Strength	Final Inspection & Testing
Guide rails and gear racks are installed and calibrated by skilled technicians using precision tools, ensuring smooth transmission and stable machine performance.	CO₂ shielded welding guarantees firm, defect-free joints, improving overall frame strength, durability, and cutting stability.	Dynamic performance tests check positioning accuracy, repeatability, and micro displacement precision. Interferometers compensate for any rack errors, ensuring superior cutting accuracy.
