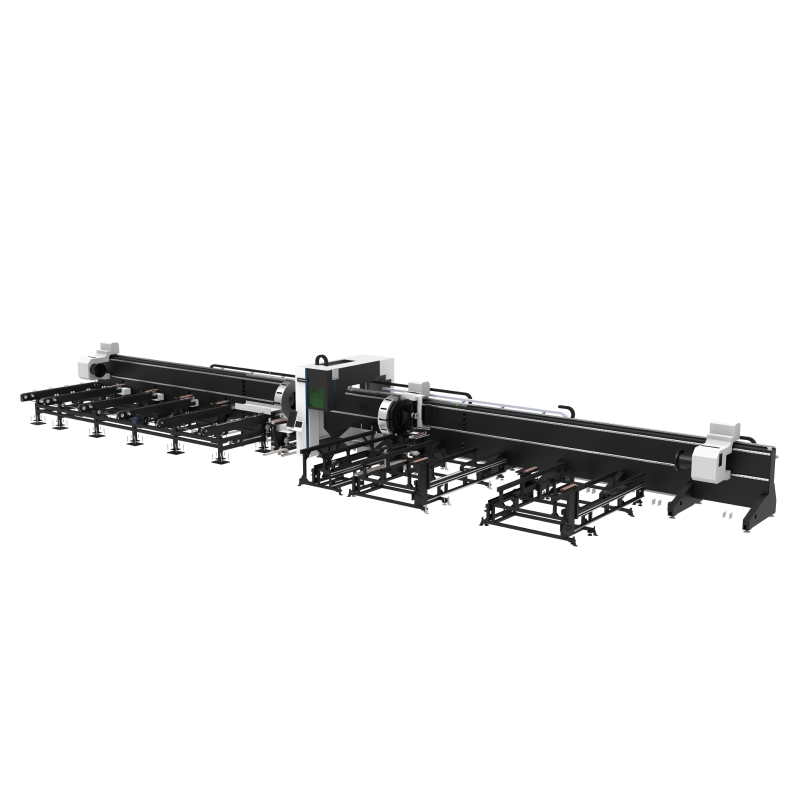

12035SN4 Four-Chuck Heavy Duty Fiber Laser Tube Cutting Machine

12035SN4 Four-Chuck Heavy Duty Fiber Laser Tube Cutting Machine

· Multi-tube feeding – significantly improves production efficiency.
· Four-chuck design – ensures material partitioning and stable cutting compared with three-chuck models.
· Suitable for heavy-duty and long tube processing.
· Standard EtherCAT version – smooth and stable operation.
· Dust-free cutting area – keeps the workspace clean.

Laser power: 6kw-30kw

Appurtenance:

12035sn4 four chuck heavy duty fiber laser tube cutting machine-0

Introduction

Specifications：

Model	12035SN4
Working Area	12000x350mm - 12000x850mm
Laser Power	6kw – 30kw
Laser Source	Raycus / Max / RECI / IPG
Laser Head	BOCI / RAYTOOLS
Motor & Drivers	DELTA / Fuji / Yaskawa
Control System	FSCUT
Positioning Accuracy	±0.03 mm
Re-positioning Accuracy	±0.02 mm
Cutting Speed	80 m/min
Cooling Method	Water cooling
Machine Size	30000 × 4900 × 2400 mm
Gross Weight	25,000 kg
Power Supply	220V 1P 50HZ / 380V 3P 50HZ

Description：

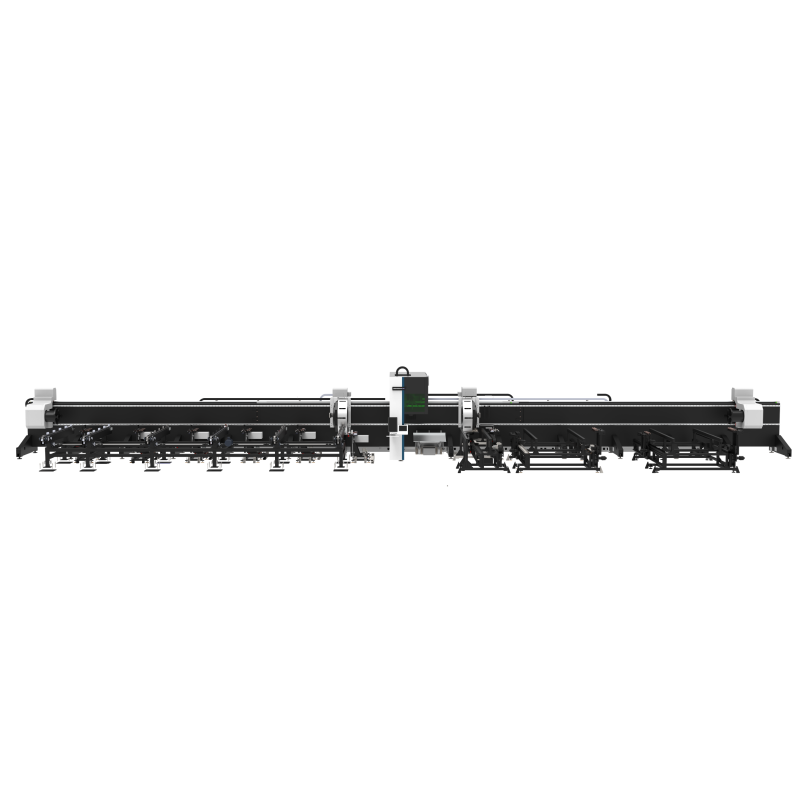

The 12035SN4 is designed for high-power, heavy-duty, and large-scale tube cutting. Its four-chuck system ensures precise material partitioning for stable, efficient production. Multiple tubes can be processed simultaneously, making it ideal for large-scale metal tube cutting. The dust-free design ensures a clean work environment, while EtherCAT control guarantees smooth and high-speed operation.

Heavy-Duty Bed & Gantry Structure

Honeycomb carbon bed with stress relief and vibration aging ensures stability and durability. Gantry double-drive structure allows smooth motion for long and heavy tubes.

High Efficiency Feeding

Four-chuck design with material partitioning improves throughput and minimizes material waste.

Advanced Control & Dust Management

FSCUT CNC system with fiber laser software supports IGS, SAT, CAD, and DXF. Professional dust extraction keeps the workspace clean and safe.

Cutting Parameters：

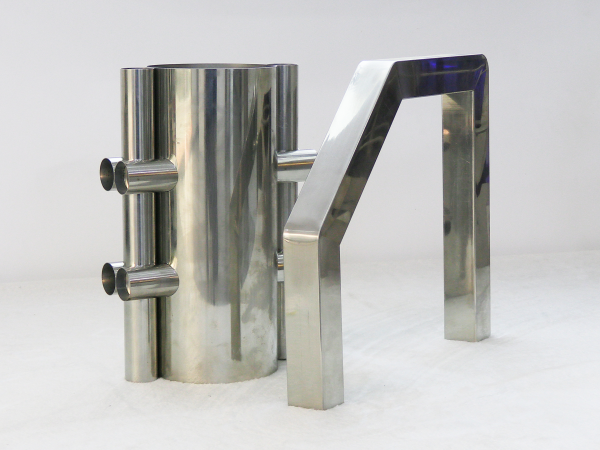

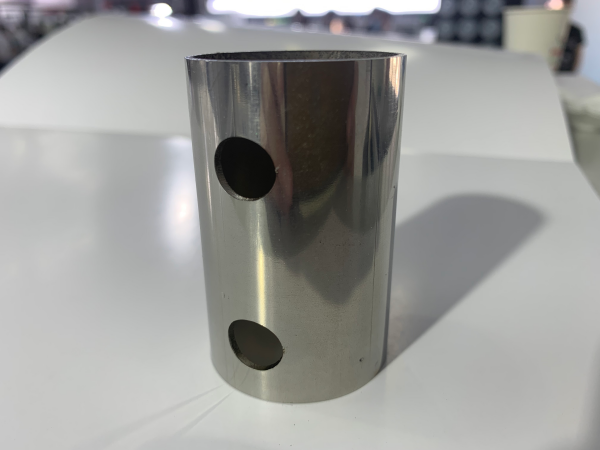

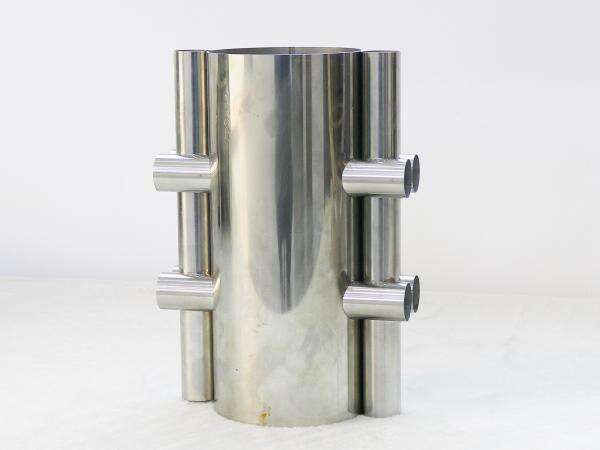

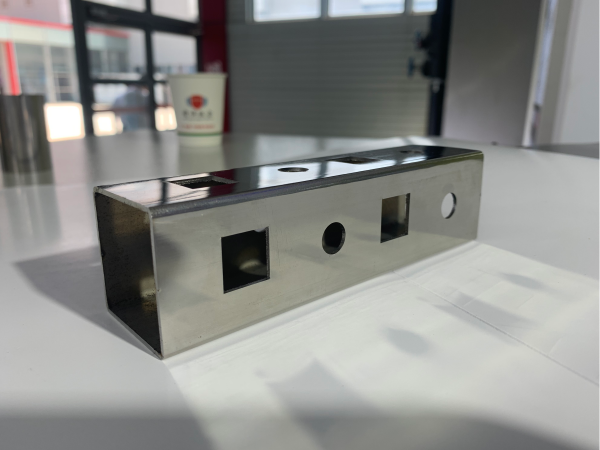

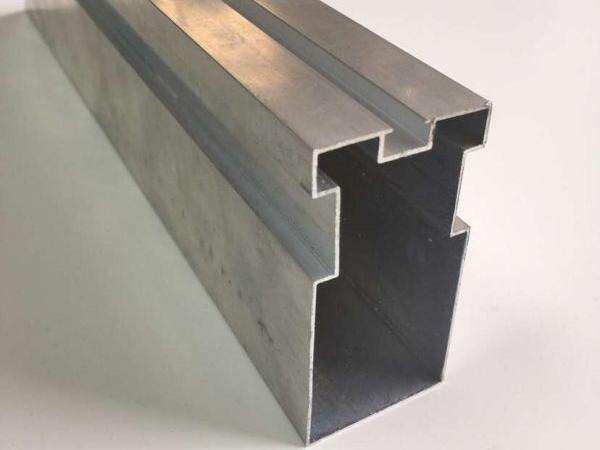

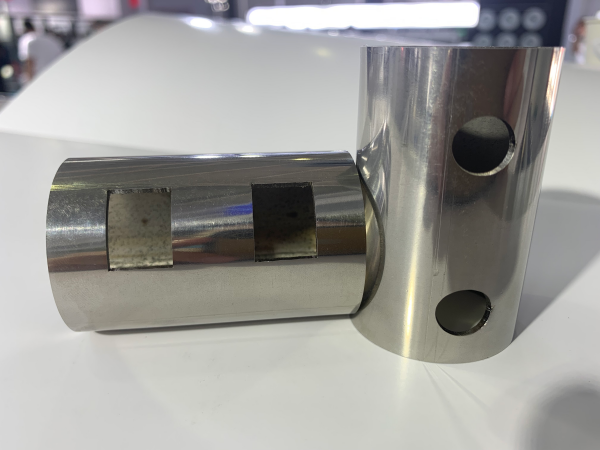

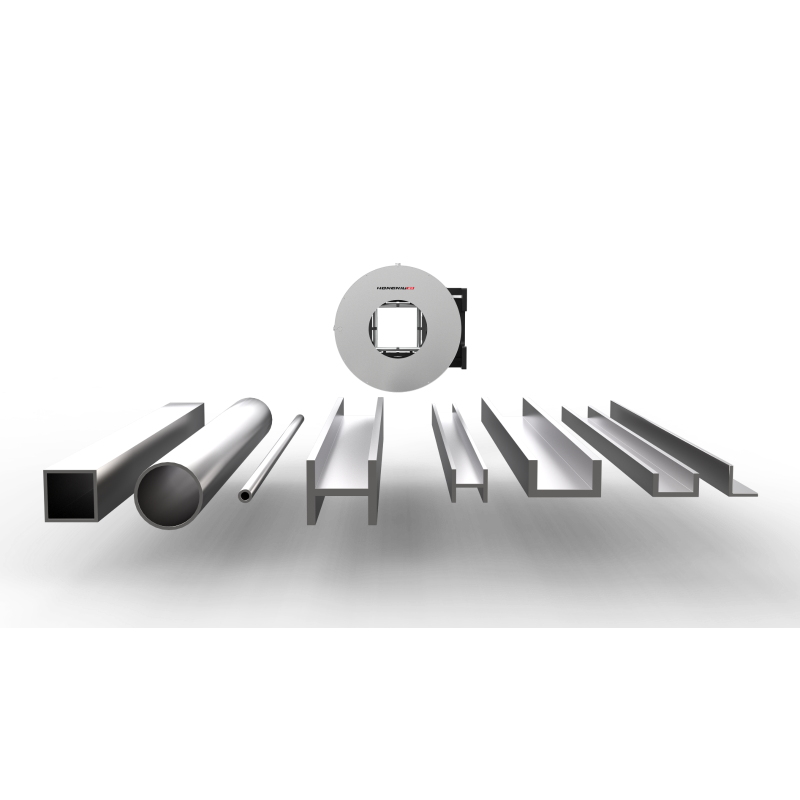

Cutting Samples：

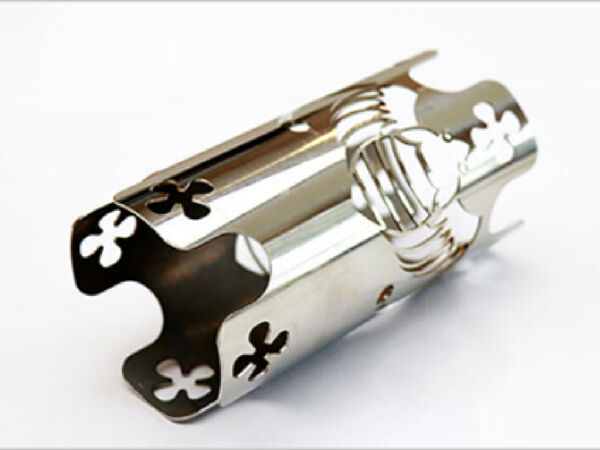

画板 9.jpg

High-Quality Components for Reliable Performance

Laser Source: Raycus, Max, RECI, or IPG for high-power tube cutting.

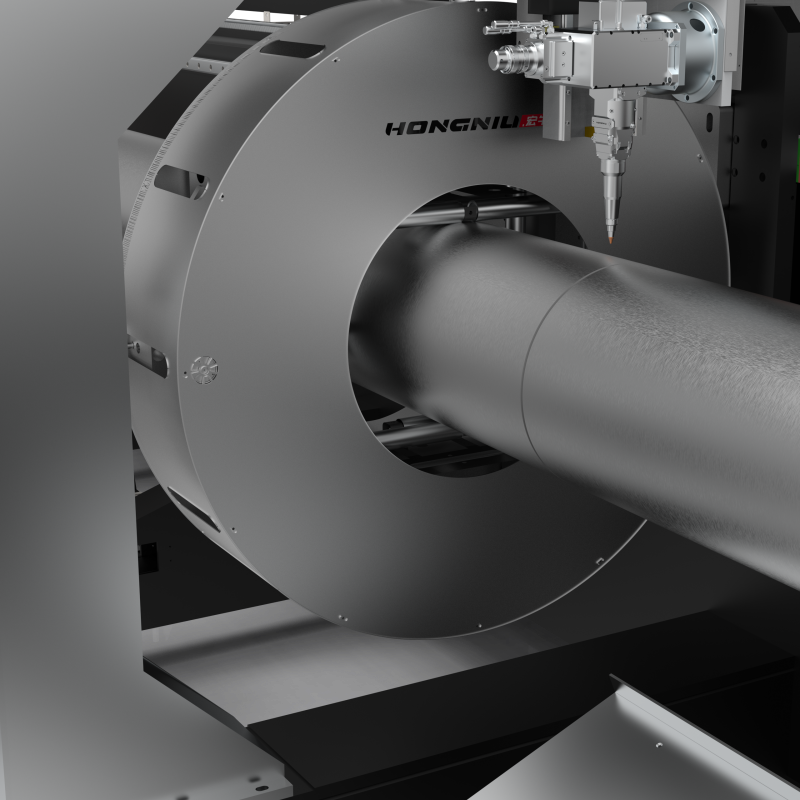

Laser Head: BOCI / RAYTOOLS with automatic focusing, anti-collision design, and intelligent monitoring.
Motors & Drivers: DELTA, Fuji, or Yaskawa for precise motion and stability.
Electrical Components: Schneider and Omron for safe and reliable operation.
Control System: FSCUT supports CAD/DXF, multi-file processing, and one-stroke flying cuts.
Cooling: Water chiller system protects both laser head and source, with over-temperature alarm.
Automatic Lubrication: Programmable frequency and volume to extend service life.

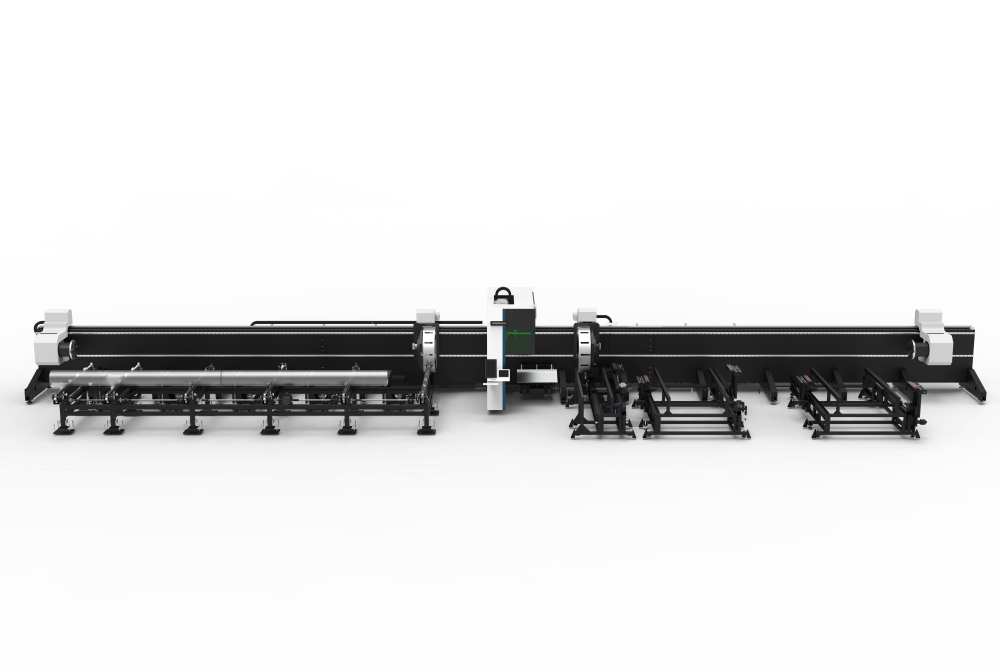

1 (1).png 1 (2).png

Specifications and Performance

The 12035SN4 offers a 12000 × 850 mm working area with laser power up to 30kw, handling tube thicknesses from 0 to 50mm. Gantry double-drive structure, reinforced four-chuck system, and high-speed servo motors deliver stable, precise, and high-speed cutting suitable for industrial production.

Applications and Versatility

Applicable Materials: Stainless Steel, Carbon Steel, Aluminum, Brass, Copper, Galvanized Tube

Industries:

Engineering Machinery

Aerospace

Electronics & Home Appliances

Automotive Manufacturing

Metallurgical Equipment

Advertising & Decorative Metalwork

Applications：

High-volume metal tube cutting with multi-tube feeding
Production of heavy-duty and long tubes for industrial use
Fabrication of structural tube components for machinery and automotive industries
Efficient cutting with minimal material waste
Dust-free operation for cleaner workspace

Application Industry Scenario Diagram


Aerospace Industry	Automotive Industry	Furniture & Decoration	Metal Fabrication Machinery

Competitive Advantage:

Four-Chuck Design: Stable material partition and precise cutting.
Multi-Tube Feeding: Maximize production efficiency.
Heavy-Duty Construction: Honeycomb carbon bed and gantry double-drive structure for long-term durability.
Advanced Dust Extraction: Ensures clean and safe operation.
Wide Laser Power Range: 6–30kw for various tube materials and thicknesses.
Premium Components: Raycus/IPG lasers, BOCI/RAYTOOLS heads, FSCUT control, Schneider/Omron systems.
Easy Operation & Maintenance: Ergonomic layout with professional software support.

Quality Inspection & Manufacturing Process：

Pre-Assembly Inspection	Precision Machining	Vibration & Natural Aging
Each machine component undergoes precise measurement of guide rail straightness and geometric accuracy. Altimeters verify linear dimensions to ensure every part meets design standards.	High-speed rough machining removes burrs and excess material, followed by fine processing for smooth, flat surfaces that ensure long-term cutting precision.	Residual internal stress is released through vibration and natural thermal cycles. This process enhances structural rigidity, stability, and dimensional accuracy of the machine bed.
Assembly Process	Welding & Structural Strength	Final Inspection & Testing
Guide rails and gear racks are installed and calibrated by skilled technicians using precision tools, ensuring smooth transmission and stable machine performance.	CO₂ shielded welding guarantees firm, defect-free joints, improving overall frame strength, durability, and cutting stability.	Dynamic performance tests check positioning accuracy, repeatability, and micro displacement precision. Interferometers compensate for any rack errors, ensuring superior cutting accuracy.
