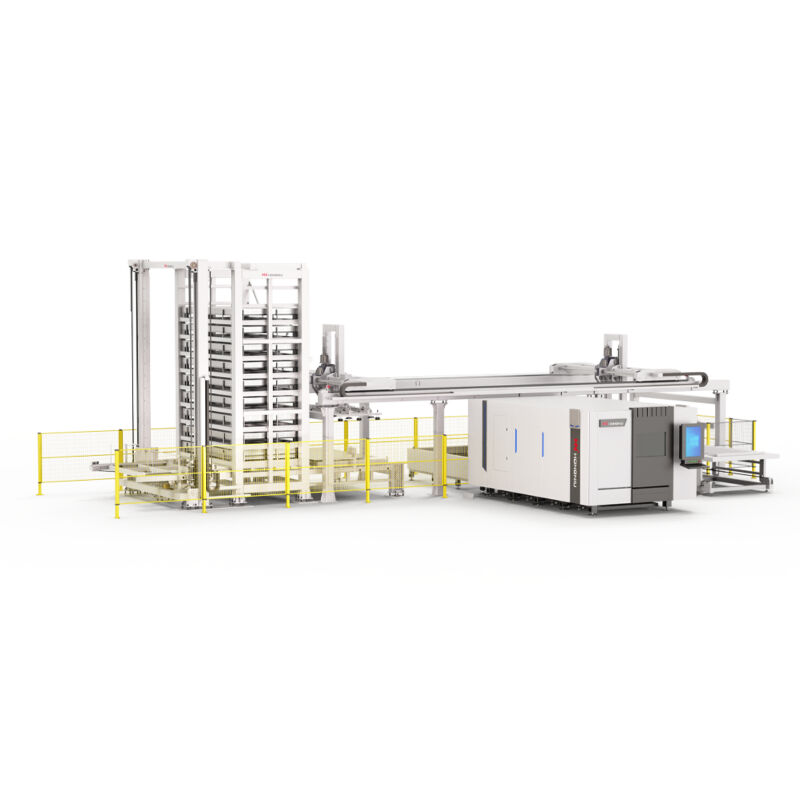

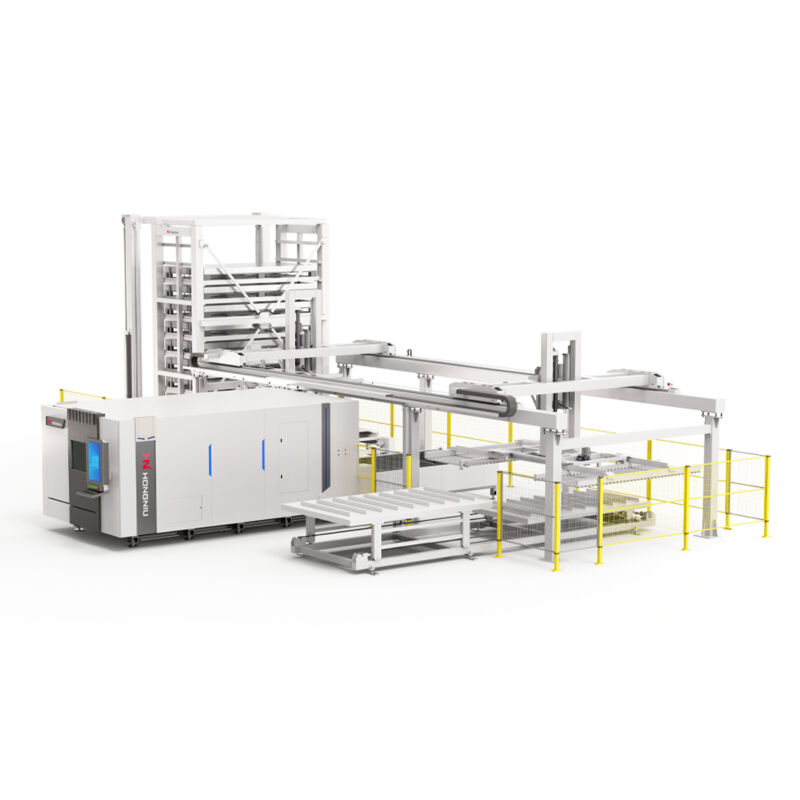

3015HU Enclosed Type Fiber Laser Cutting Machine with Automatic Loading & Unloading Material Warehouse

3015HU Enclosed Type Fiber Laser Cutting Machine with Automatic Loading & Unloading Material Warehouse

· Fully automated production line – equipped with intelligent material warehouse, increasing efficiency and reducing labor cost.
· Closed structure – ensures operator safety and maintains a clean production environment.
· Automatic loading & unloading – boosts throughput for high-volume industrial production.
· Precise dust removal – air duct opens only at the cutting zone for smokeless processing.
· Dual platforms – high-efficiency switching for continuous cutting operation.
· Double dust duct – large airflow design for clean, dust-free workshop.
· Heavy-duty bed design – stable structure after annealing and aging treatment.

Laser power: 1.5kw-12kw

Overview

Overview

Specifications：

Model	3015HU
Working Area	3000 × 1500 mm
Laser Power	1.5KW – 12KW
Laser Source	Raycus / Max / RECI / IPG
Laser Head	BOCI / RAYTOOLS
Control Software	Cypcut / Raytools
Control System	Servo motor drivers
Guide Rails	HONGNIU
Positioning Accuracy	±0.03 mm
Re-positioning Accuracy	±0.02 mm
Cutting Speed	130 m/min
Cooling Method	Water Cooling
Weight	10–20 tons
Condition	New
Cutting Thickness	0–10 mm
Machine Size (Package)	11000 × 12000 × 5800 mm
Gross Weight	30 tons

Description：

Enclosed Type Fiber Laser Cutting Machine with Automatic Loading and Unloading Warehouse — HU Series

The HU-series integrates fiber laser cutting with a fully automated material warehouse, enabling 24/7 continuous operation, reduced labor cost, and higher processing efficiency. The closed design ensures a clean and safe working environment, while the intelligent dust removal system guarantees smokeless cutting.

Integrated Heavy-Duty Bed & Gantry Design

Honeycomb carbon-steel bed, annealed and aging-treated for long-term stability.
Gantry double-drive motion system for smooth acceleration and high precision.
High-strength aviation-grade beam with excellent dynamic performance.

Automatic Loading & Unloading System

Supports 10-layer material warehouse.
Each layer supports up to 3T material storage.
Automatic sheet recognition, loading, and unloading for continuous processing.

Advanced Dust & Smoke Management

Accurate dust extraction — the air duct opens only in the active cutting zone.
Double dust duct structure with high airflow for a clean, smokeless workshop.

User-Friendly Operation

Cypcut / FSCUT intelligent control, supporting CAD/DXF formats.
Full-enclosure structure with easy-access maintenance doors.

Cutting Parameters：

Cutting Samples：

High-Quality Components for Reliable Performance

Laser Source: Raycus / Max / RECI / IPG — stable, high-power output.
Laser Head: BOCI / RAYTOOLS — auto-focus, anti-collision, intelligent monitoring.
Servo System: High-inertia BAIGELA servo motors.
Electrical Components: OMRON, Delixi — stable and safe.
Control System: Cypcut / FSCUT supports multi-file processing, simulation, flying cuts.
Water Cooling: Intelligent temperature control with alarm protection.
Lubrication System: Fully automatic, programmable lubrication frequency and volume.
Sensors & Pneumatics: CHIIB sensors, Airtac/SNS pneumatic parts.

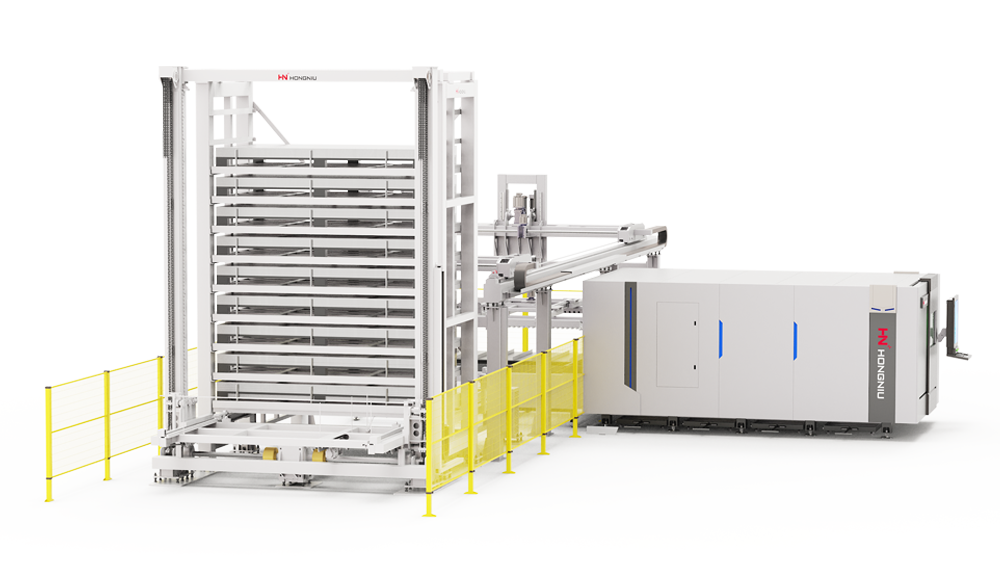

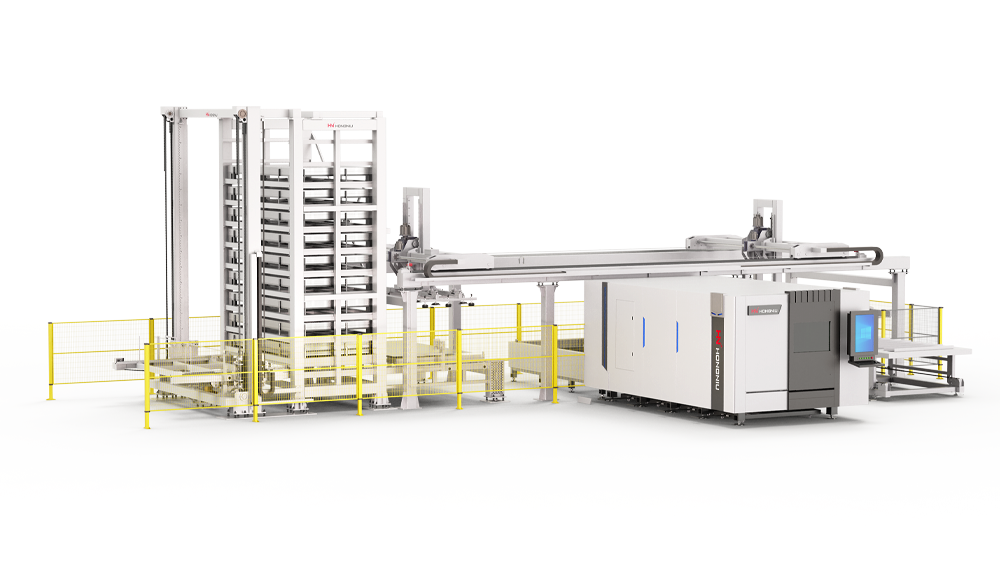

3015HU (1).png 3015HU (2).png

Specifications and Performance

The HU-series offers cutting areas up to 6000 × 2500 mm, supporting sheet thickness 1–10 mm and automatic loading/unloading of sheets up to 500 kg.
The high-speed BAIGELA servo motors, gantry double-drive structure, and reinforced honeycomb carbon-steel bed ensure stable, precise, and continuous high-speed cutting.

Applications and Versatility

Materials

Stainless Steel
Carbon Steel
Aluminum
Brass
Copper
Galvanized Sheet

Industries

Engineering Machinery
Aerospace
Electronics & Electrical
Automobile Manufacturing
Home Appliances
Panel Beating
Metallurgy
Advertising & Decorative Metalwork

Applications：

Automated high-volume sheet metal cutting
Production of automotive and aerospace components
Industrial equipment fabrication
Electrical enclosures and metal cabinets
Advertising signs and decorative metal panels
Precision cutting with minimal labor involvement

Application Industry Scenario Diagram


Aerospace Industry	Automotive Industry	Furniture & Decoration	Metal Fabrication Machinery

Competitive Advantage:

Fully Automated System: Material warehouse + loading/unloading manipulator for continuous production.
Closed Design: Safe, dust-free, environmentally friendly workshop.
Accurate Dust Removal: Zone-based air duct activation for efficient smoke extraction.
Dual Platforms: Rapid switching enhances productivity.
Heavy-Duty Bed: Honeycomb structure, annealed & aged to prevent deformation.
High-Speed Performance: Up to 130 m/min processing speed.
Wide Power Range: 1.5kw – 12kw for diverse applications.
Premium Components: Raycus/IPG lasers, BOCI/RAYTOOLS heads, OMRON/Schneider electronics.
Easy Maintenance: Intelligent monitoring, automatic lubrication, and modular components.
Strong Material Compatibility: Supports cutting of multiple metal types from 1–10 mm.

Quality Inspection & Manufacturing Process：

Pre-Assembly Inspection	Precision Machining	Vibration & Natural Aging
Each machine component undergoes precise measurement of guide rail straightness and geometric accuracy. Altimeters verify linear dimensions to ensure every part meets design standards.	High-speed rough machining removes burrs and excess material, followed by fine processing for smooth, flat surfaces that ensure long-term cutting precision.	Residual internal stress is released through vibration and natural thermal cycles. This process enhances structural rigidity, stability, and dimensional accuracy of the machine bed.
Assembly Process	Welding & Structural Strength	Final Inspection & Testing
Guide rails and gear racks are installed and calibrated by skilled technicians using precision tools, ensuring smooth transmission and stable machine performance.	CO₂ shielded welding guarantees firm, defect-free joints, improving overall frame strength, durability, and cutting stability.	Dynamic performance tests check positioning accuracy, repeatability, and micro displacement precision. Interferometers compensate for any rack errors, ensuring superior cutting accuracy.
