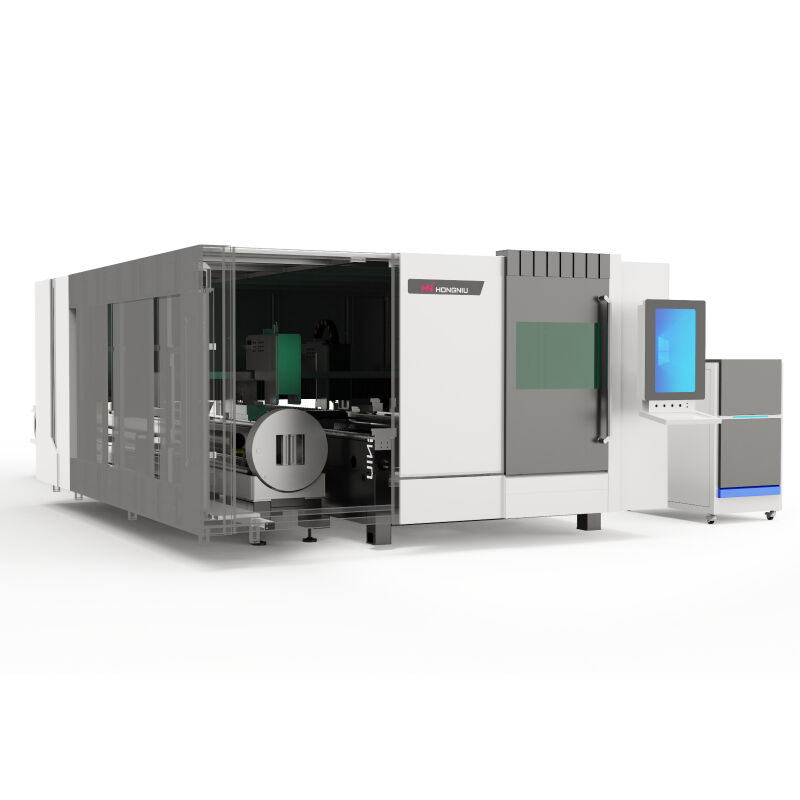

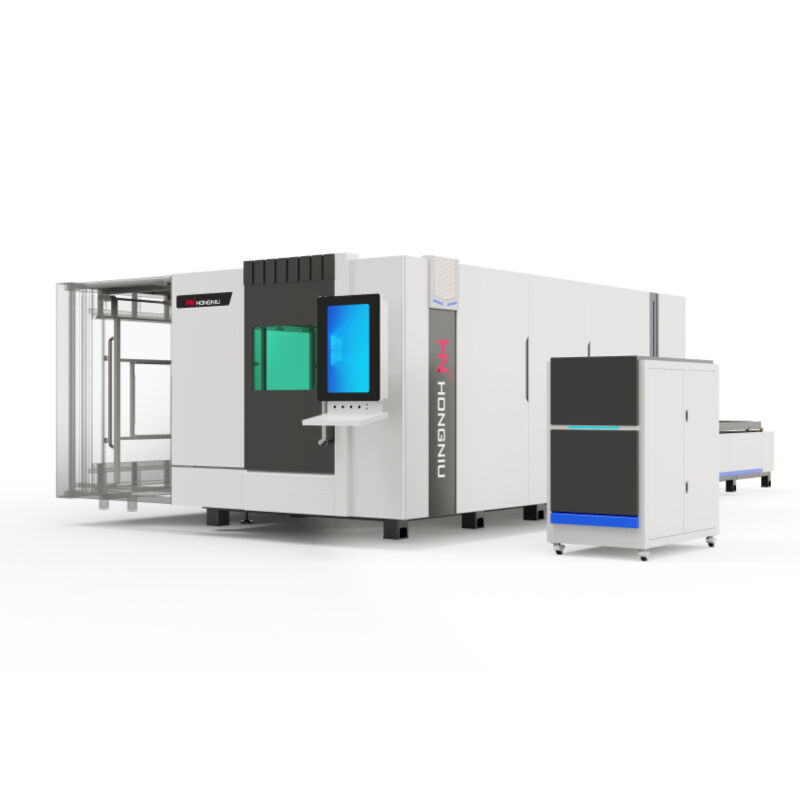

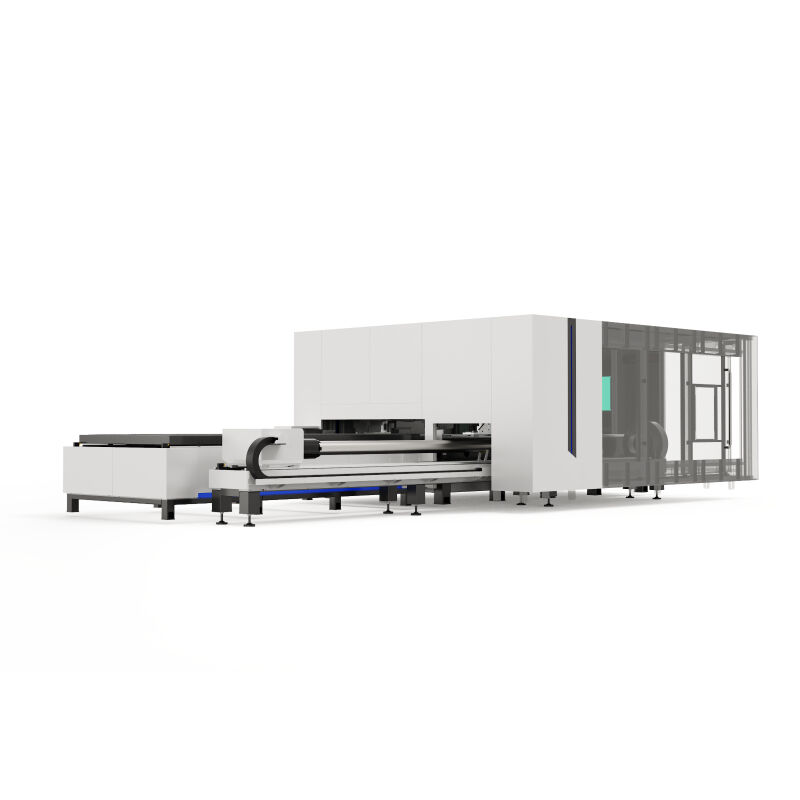

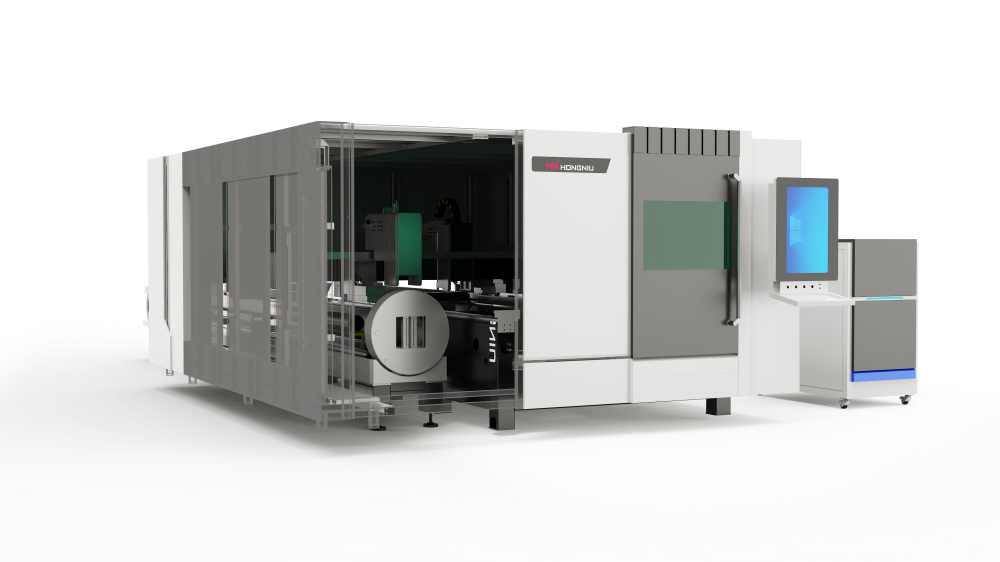

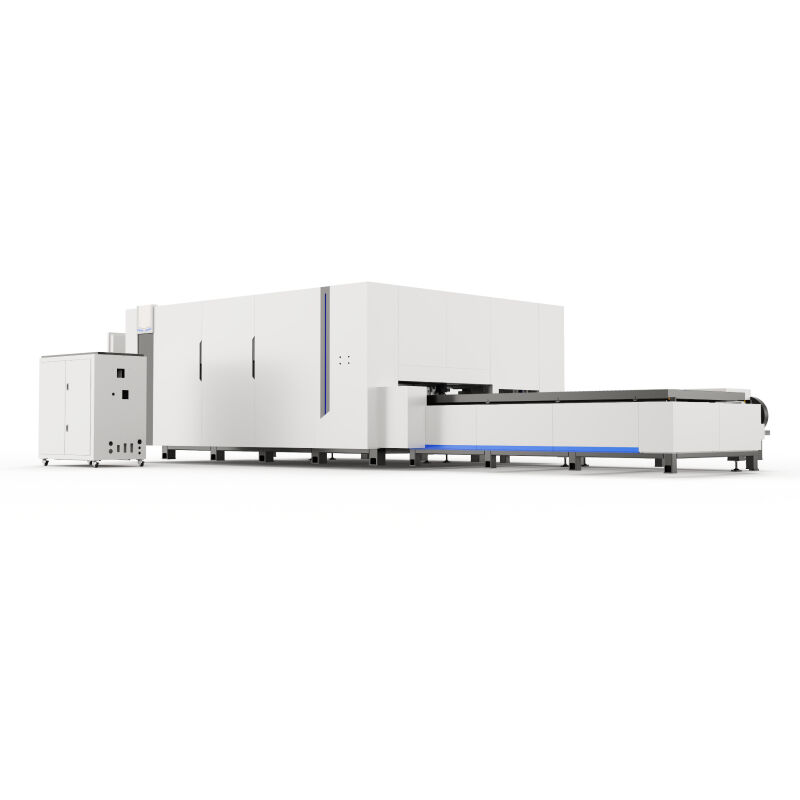

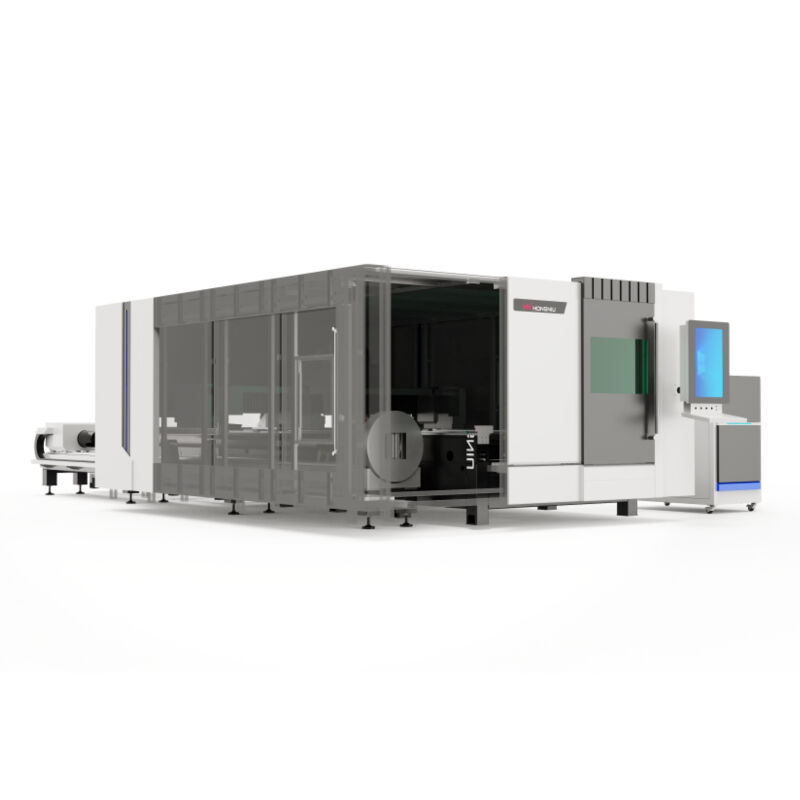

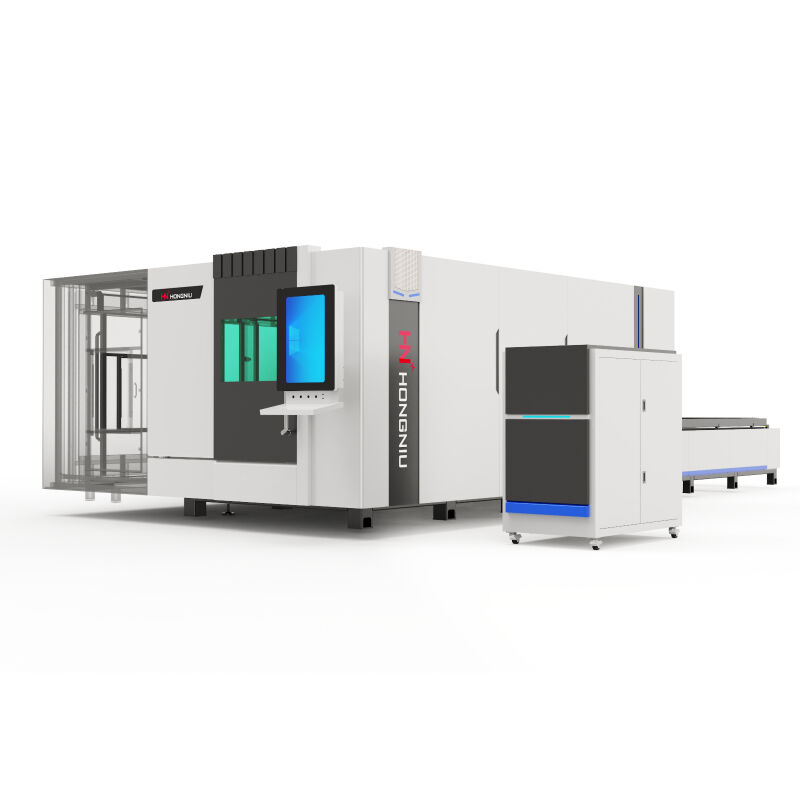

3015HR Enclosed Exchange Platform Plate and Tube Integrated Fiber Laser Cutting Machine

Specifications：

Description：

Enclosed Exchange Platform Plate and Tube Integrated Fiber Laser Cutting Machine – HR Series

The HR Series is designed for stable, high-precision industrial cutting of both sheets and tubes. Its fully enclosed structure ensures operational safety and efficient dust and smoke management.

Integrated Heavy-Duty Bed & Gantry Structure

The reinforced honeycomb carbon steel bed with high-precision aviation aluminum beam reduces vibration and ensures stable production. Gantry double-drive structure guarantees smooth and accurate cutting.

Dual Platforms for Maximum Efficiency

Dual-platform configuration allows independent cutting of sheets and tubes simultaneously, significantly increasing throughput.

Advanced Dust & Smoke Management

Precise dust removal system opens the active cutting zone ducts while closing inactive areas, maintaining a clean and smoke-free environment.

User-Friendly & Efficient Operation

Cantilever control platform saves space, while access doors and optimized layout allow easy maintenance and workflow.

Cutting Parameters：

Cutting Samples：

High-Quality Components for Reliable Performance

• Laser Source: Raycus, Max, RECI, or IPG for high-power cutting.

• Laser Head: BOCI / RAYTOOLS with automatic focusing, anti-collision design, and intelligent monitoring.

• Motors & Drivers: DELTA, Fuji, or Yaskawa for precise motion and stability.

• Electrical Components: Schneider and Omron for reliable operation.

• Control System: FSCUT supports CAD/DXF, multi-file processing, and one-stroke flying cuts.

• Cooling: Water chiller protects both laser head and source, with over-temperature alarm.

• Automatic Lubrication: Programmable frequency and volume to extend service life.

Specifications and Performance

The HR Series supports working areas from 3000×1500 mm to 6000×2500 mm, with laser power 1.5–12kw, and can handle sheet thicknesses up to 35 mm. Gantry double-drive structure, reinforced beam, and high-speed servo motors provide stable, precise, and high-speed cutting for industrial production.

Applications and Versatility

Materials:

• Stainless Steel, Carbon Steel, Aluminum, Brass, Copper, Tubes


Industries:

• Automotive & Aerospace

• Engineering Machinery

• Electronics & Home Appliances

• Advertising & Decorative Metalwork

• Panel Beating & Metallurgical Equipment

Applications：

• Dual-use plate and tube cutting

• High-volume sheet and tube production

• Fabrication of industrial frames, enclosures, and piping components

• Signage, decorative panels, and metal artwork

• Efficient cutting with minimal material waste

Application Industry Scenario Diagram

Aerospace Industry	Automotive Industry	Furniture & Decoration	Metal Fabrication Machinery

Competitive Advantage:

• Closed Design: Ensures safe operation and smoke-free workshop.

• Rotating Shaft: Optimized for tube processing.

• High-Precision Heavy Bed: Prevents table vibration during cutting.

• Aviation Aluminum Beam: Third-generation profile increases strength and reduces motor load.

• Precise Dust Extraction: Zoning air duct system for effective smoke removal.

• Dual Platforms: Maximize throughput and efficiency.

• Double Dust Ducts: Large aperture, smoke-free cutting.

• Laser Power Range: 1.5–12kw for versatile material processing.

• Easy Operation & Maintenance: Cantilever platform and access doors for convenience.

• Premium Components: Raycus/IPG lasers, BOCI/RAYTOOLS heads, FSCUT control, Schneider/Omron systems.

Quality Inspection & Manufacturing Process：
