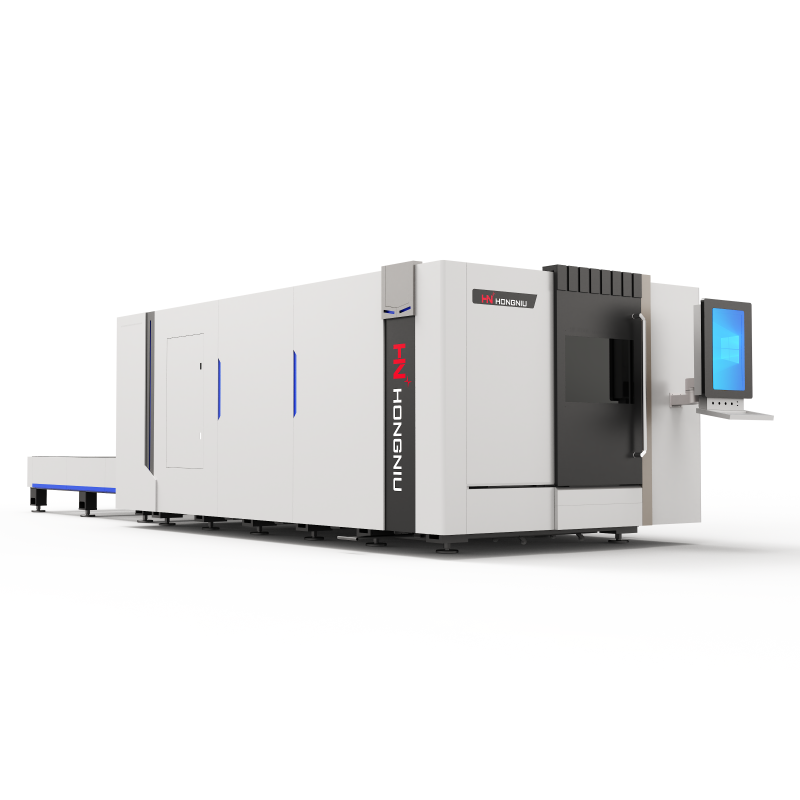

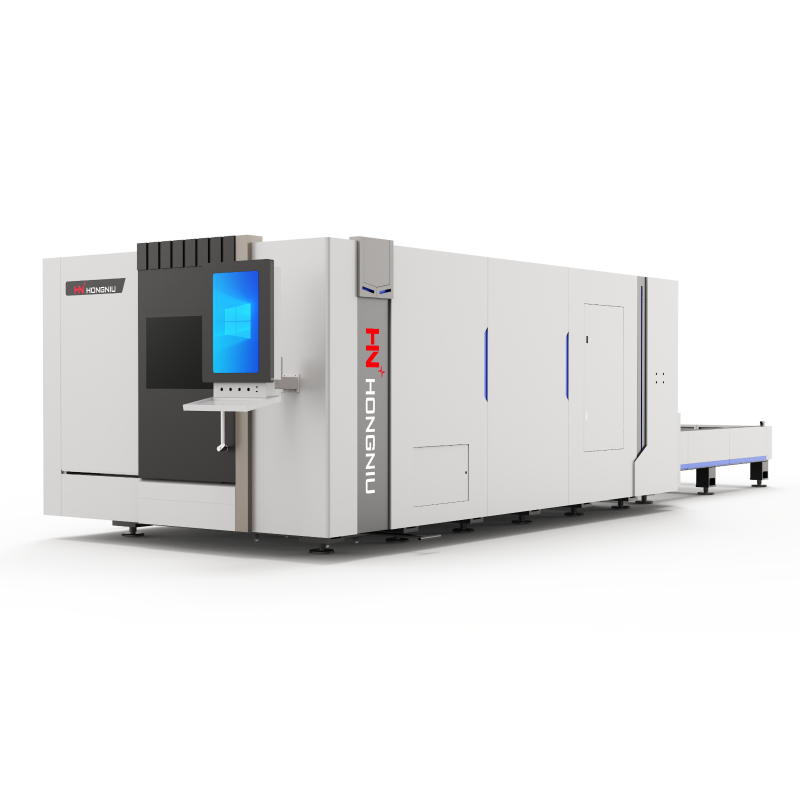

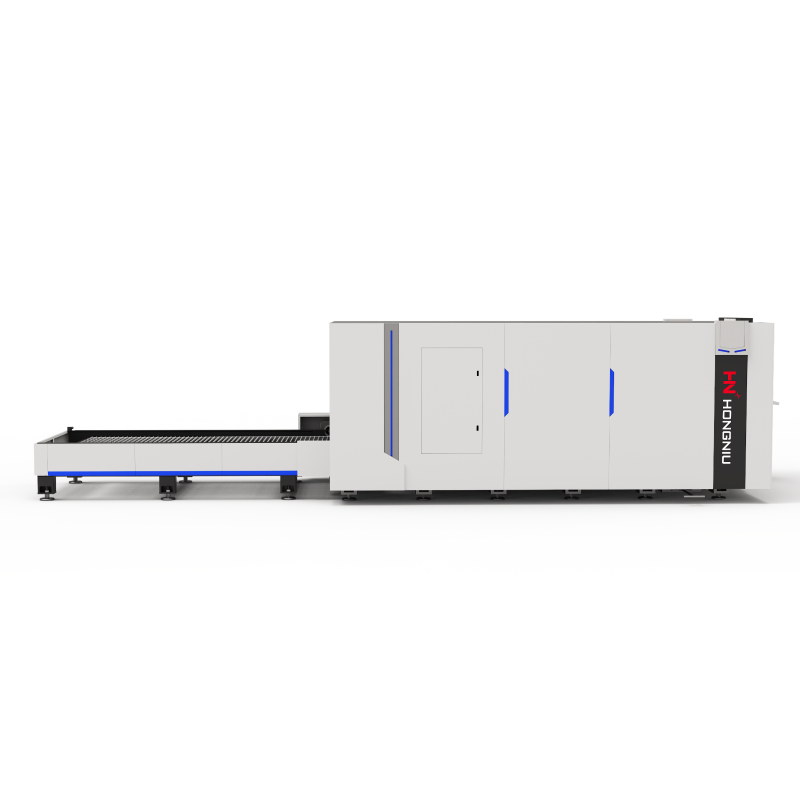

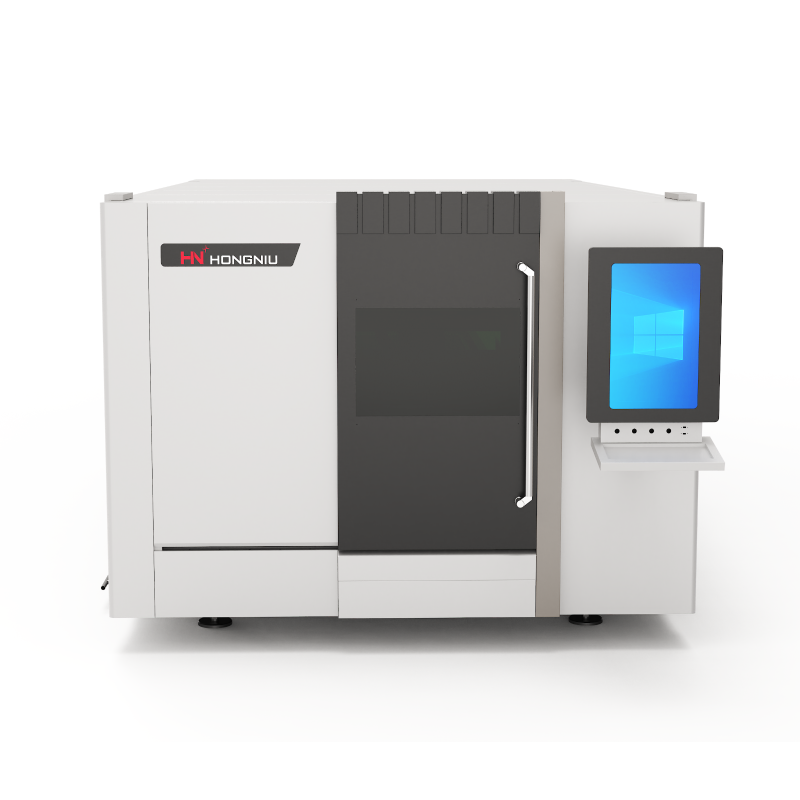

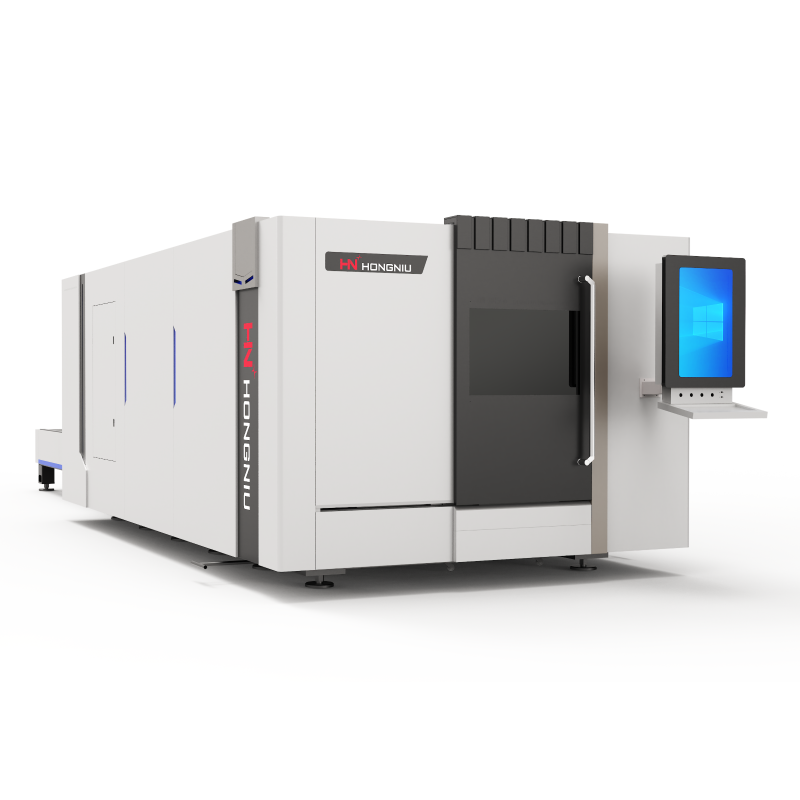

3015GA Full Enclosed Exchange Platform Fiber Laser Cutting Machine

3015GA Full Enclosed Exchange Platform Fiber Laser Cutting Machine

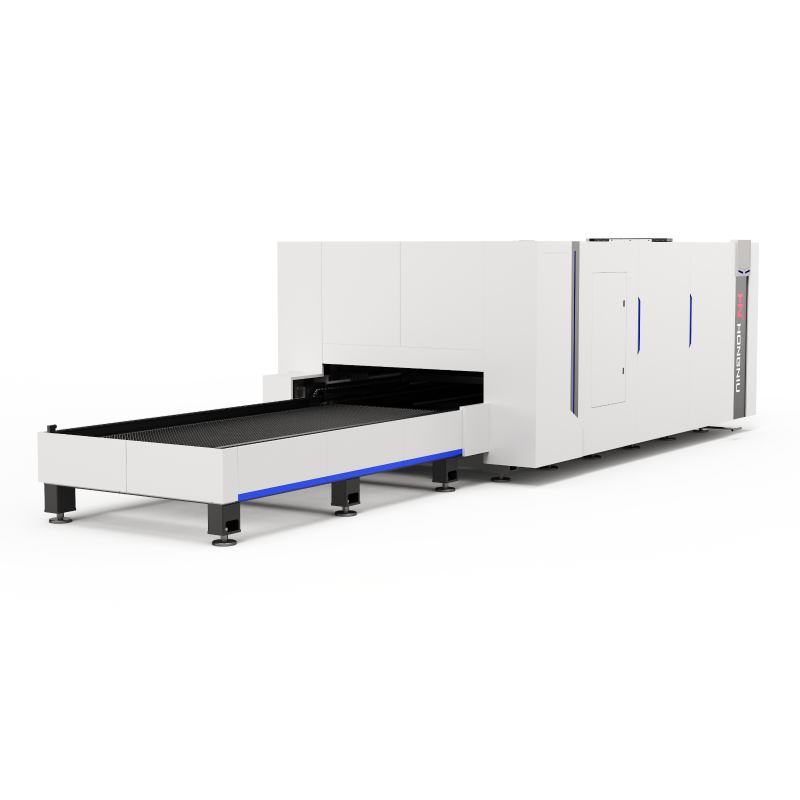

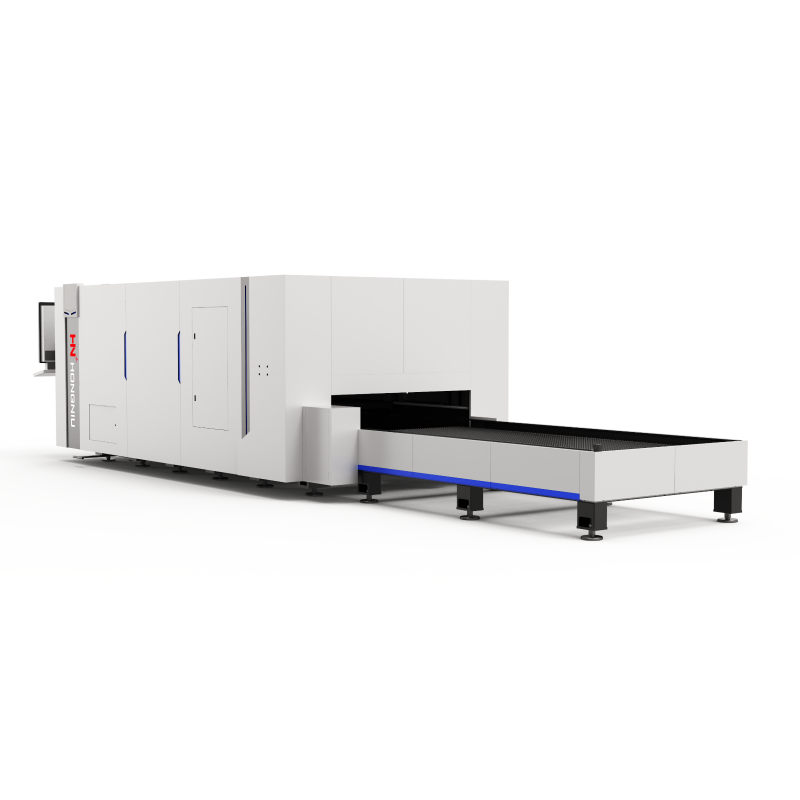

· Dual platforms – accelerate work efficiency for high-volume production.
· Closed design – ensures operational safety and cleaner workspace.
· Advanced dust removal – zoning air ducts for smoke-free cutting.
· Heavy-duty bed – 16mm steel welded ultra-heavy structure for high-power operation.

Laser power: 1.5kw-80kw

Introduction

Specifications：

Model	3015GA / 4020GA / 6025GA
Working Area	3000 × 1500 mm / 4000 × 2000 mm / 6000 × 2500 mm
Laser Power	1.5KW – 80KW
Laser Source	Raycus / Max / RECI / IPG
Laser Head	BOCI / RAYTOOLS
Motor & Drivers	DELTA / Fuji / Yaskawa
Control System	FSCUT
Cutting Speed	80 m/min
Positioning Accuracy	±0.03 mm
Re-positioning Accuracy	±0.02 mm
Cooling Method	Water Cooling
Machine Size	9950 × 2970 × 2203 mm
Gross Weight	6000 kg

Description：

Full enclosed exchange platform fiber laser cutting machine – Models 3015GA / 4020GA / 6025GA

The GA series is designed for high-power industrial metal cutting with precision, safety, and efficiency. Dual platforms allow simultaneous cutting operations, dramatically increasing throughput, while the fully enclosed cabinet ensures a clean, smoke-free, and safe working environment.

Heavy-Duty Bed & Gantry Structure

The ultra-heavy 16mm steel plate welded bed and reinforced gantry beam provide exceptional stability for high-power lasers. The cylinder-clamped moving distribution board prevents vibration during cutting, ensuring smooth edges and consistent accuracy.

Advanced Dust & Smoke Management

Dual air ducts with zoning capability automatically activate dust extraction in the active cutting area while shutting off other zones. This ensures smoke-free operation and reduces wear on laser optics.

User-Friendly & Efficient Operation

The GA series features electric workbenches for easy loading and unloading, and large-span lifting doors with intelligent control for convenient maintenance of the laser head.

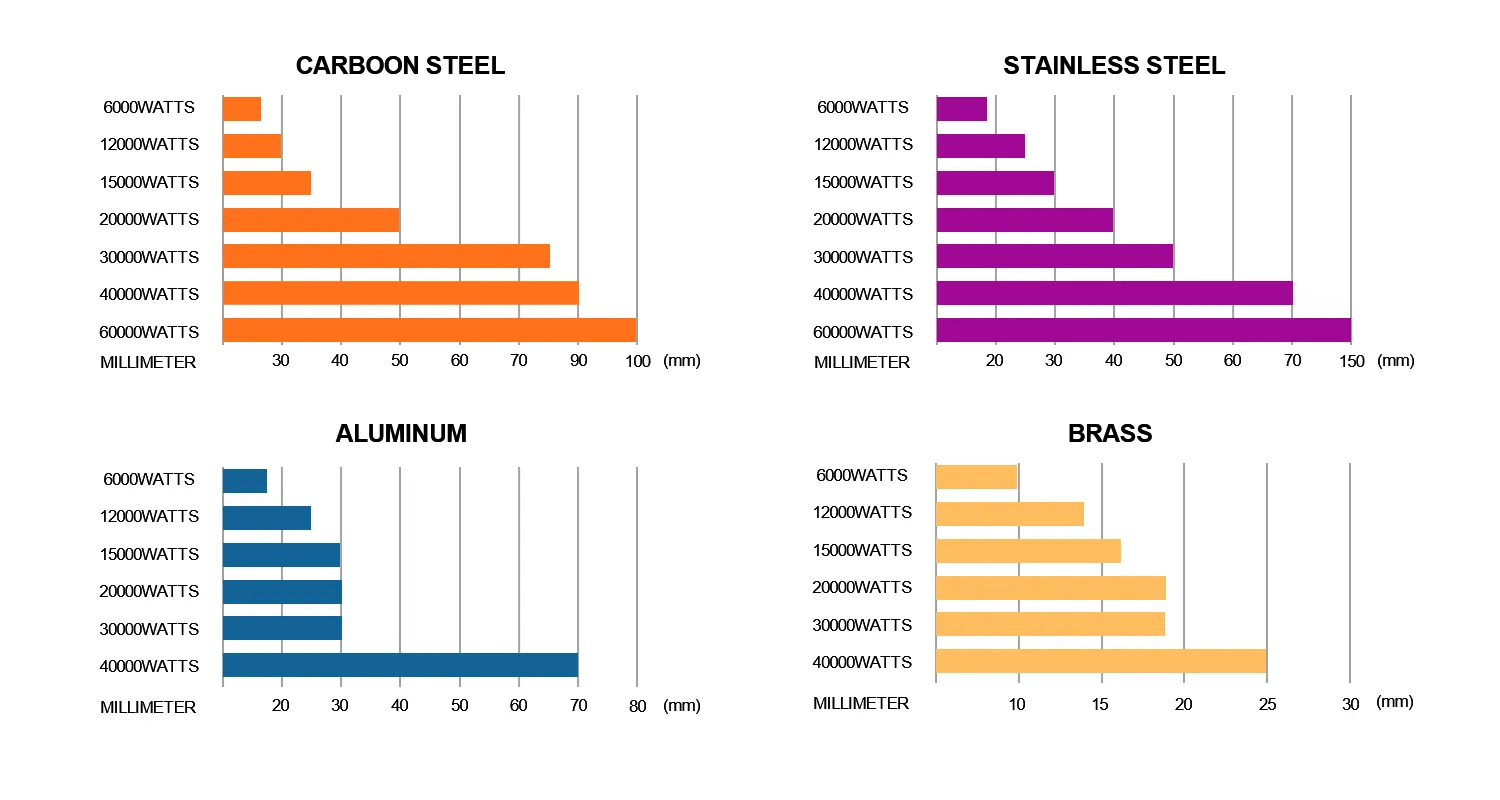

Cutting Parameters：

Cutting Samples：

High-Quality Components for Reliable Performance

Laser Source: Raycus, Max, RECI, or IPG for high-power cutting.
Laser Head: BOCI / RAYTOOLS with automatic focusing, anti-collision design, and intelligent monitoring.
Motors & Drivers: DELTA, Fuji, or Yaskawa for precise motion and stability.
Electrical Components: Schneider and Omron for reliable and safe operation.
Control System: FSCUT supports CAD/DXF, multi-file processing, and one-stroke flying cuts.
Cooling: Water chiller system protects both laser head and source, with alarm system for overheating.
Automatic Lubrication: Programmable frequency and volume to extend service life.

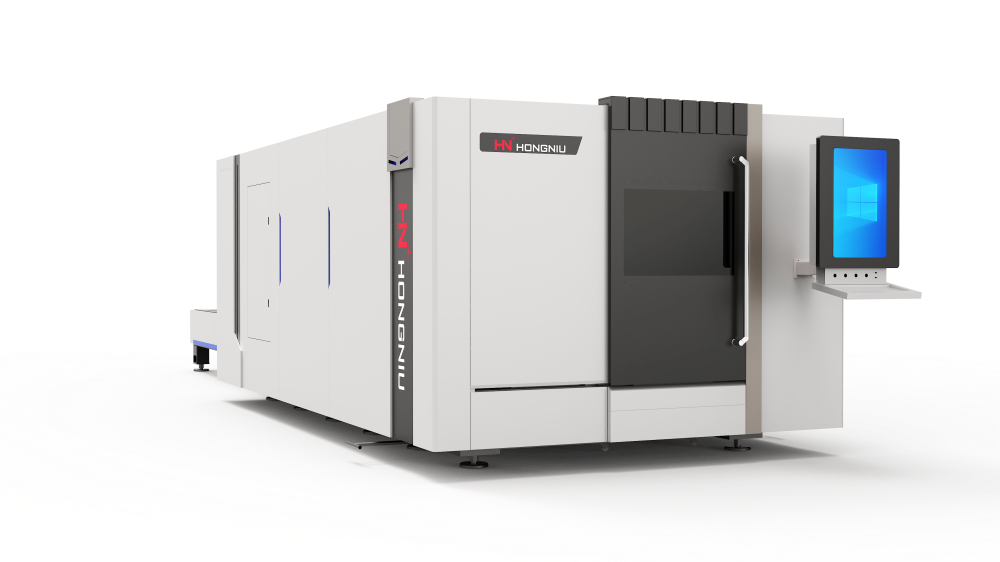

3015GA (2).png 3015GA (8).png

Specifications and Performance

With working areas ranging from 3000 × 1500 mm to 6000 × 2500 mm, and laser power up to 80KW, the GA series can handle metal thicknesses from 1 to 50mm. Gantry double-drive structure, high-speed servo motors, and reinforced beams deliver precision, stability, and high-speed production for industrial requirements.

Applications and Versatility

Ideal for cutting metals including:

Stainless Steel, Carbon Steel, Aluminum, Brass, Copper, Galvanized Sheet

Industries:

Automotive & Aerospace
Engineering Machinery
Electronics & Home Appliances
Advertising & Decorative Metalwork
Panel Beating & Metallurgical Equipment

Applications：

High-volume sheet metal cutting with dual platforms
Production of automotive and aerospace components
Fabrication of electrical enclosures and industrial equipment
Signage and decorative metal panels
Efficient cutting with minimal material waste

Application Industry Scenario Diagram


Aerospace Industry	Automotive Industry	Furniture & Decoration	Metal Fabrication Machinery

Competitive Advantage:

Dual Platforms: Maximize throughput and efficiency.
Closed Cabinet Design: Provides safety, smoke-free operation, and environmental protection.
Heavy-Duty Bed & Reinforced Gantry: Stable operation under high-power lasers.
Advanced Dust Extraction: Zoning air ducts ensure precise smoke removal.
Wide Laser Power Range: 1.5KW – 80KW for various materials and thicknesses.
Easy Operation & Maintenance: Electric workbench and large lifting doors.
Premium Components: Raycus/IPG lasers, BOCI/RAYTOOLS heads, FSCUT control, Schneider/Omron systems.
Versatile Material Capability: Cuts metals from 1 to 50mm with precision and minimal waste.

Quality Inspection & Manufacturing Process：

Pre-Assembly Inspection	Precision Machining	Vibration & Natural Aging
Each machine component undergoes precise measurement of guide rail straightness and geometric accuracy. Altimeters verify linear dimensions to ensure every part meets design standards.	High-speed rough machining removes burrs and excess material, followed by fine processing for smooth, flat surfaces that ensure long-term cutting precision.	Residual internal stress is released through vibration and natural thermal cycles. This process enhances structural rigidity, stability, and dimensional accuracy of the machine bed.
Assembly Process	Welding & Structural Strength	Final Inspection & Testing
Guide rails and gear racks are installed and calibrated by skilled technicians using precision tools, ensuring smooth transmission and stable machine performance.	CO₂ shielded welding guarantees firm, defect-free joints, improving overall frame strength, durability, and cutting stability.	Dynamic performance tests check positioning accuracy, repeatability, and micro displacement precision. Interferometers compensate for any rack errors, ensuring superior cutting accuracy.
