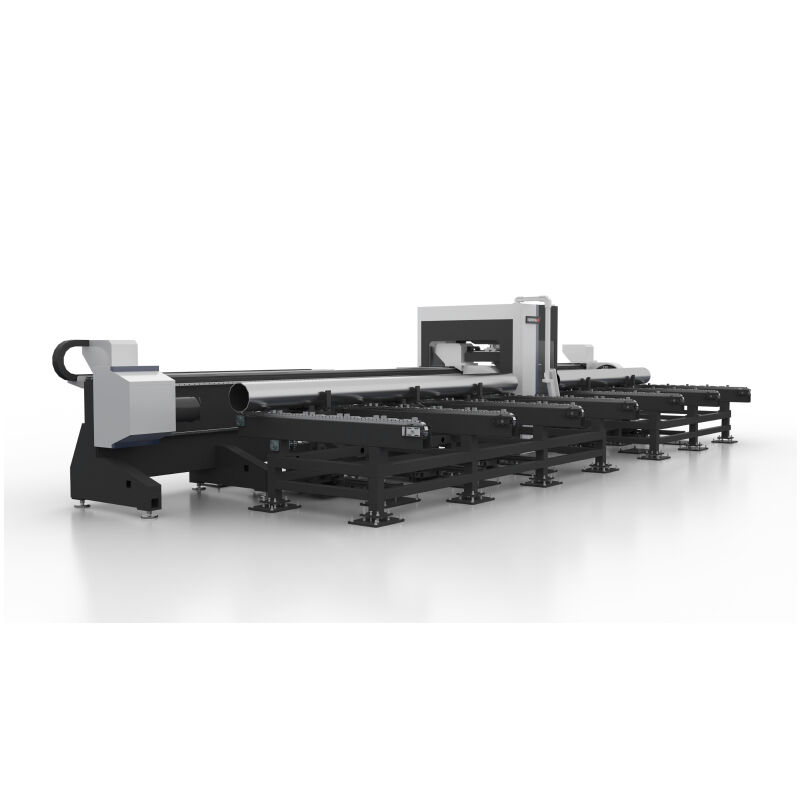

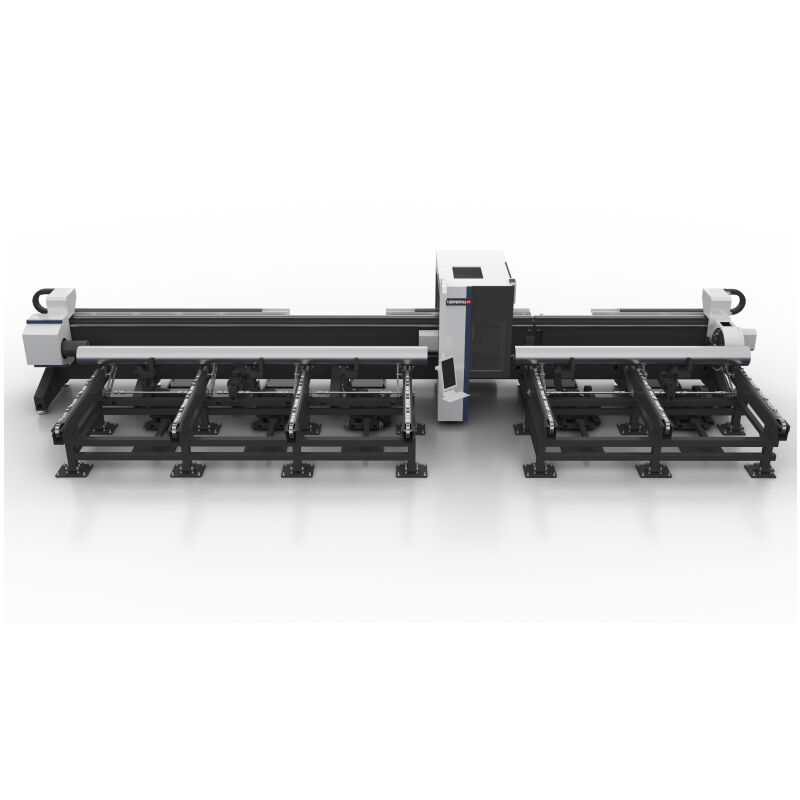

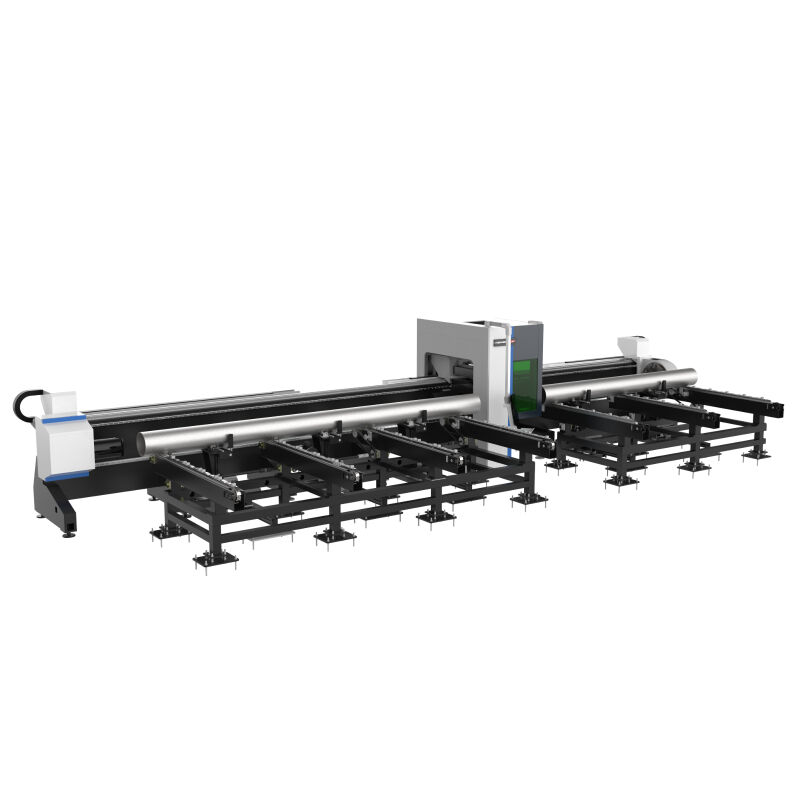

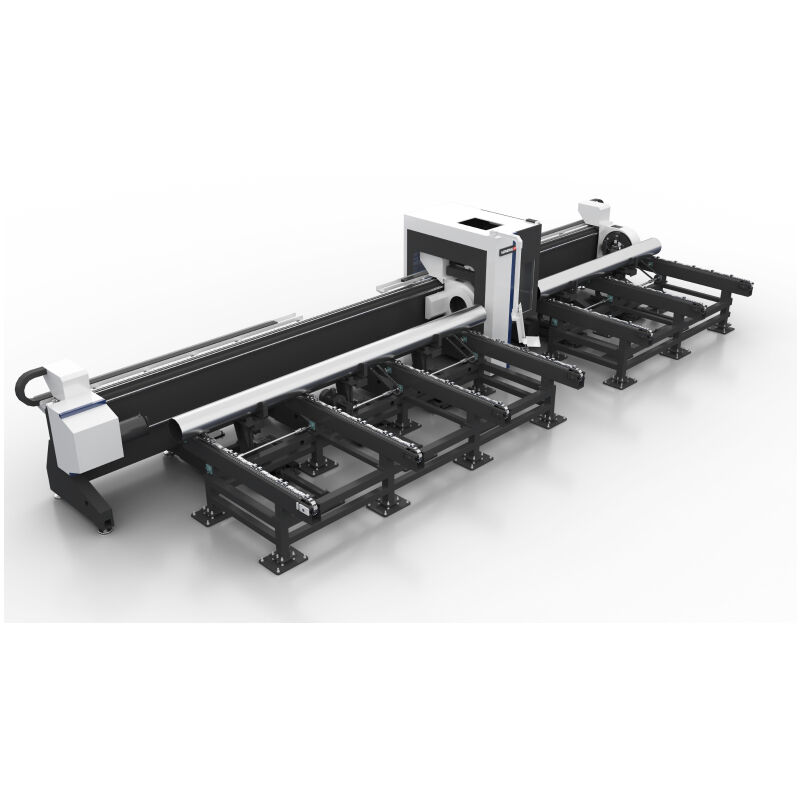

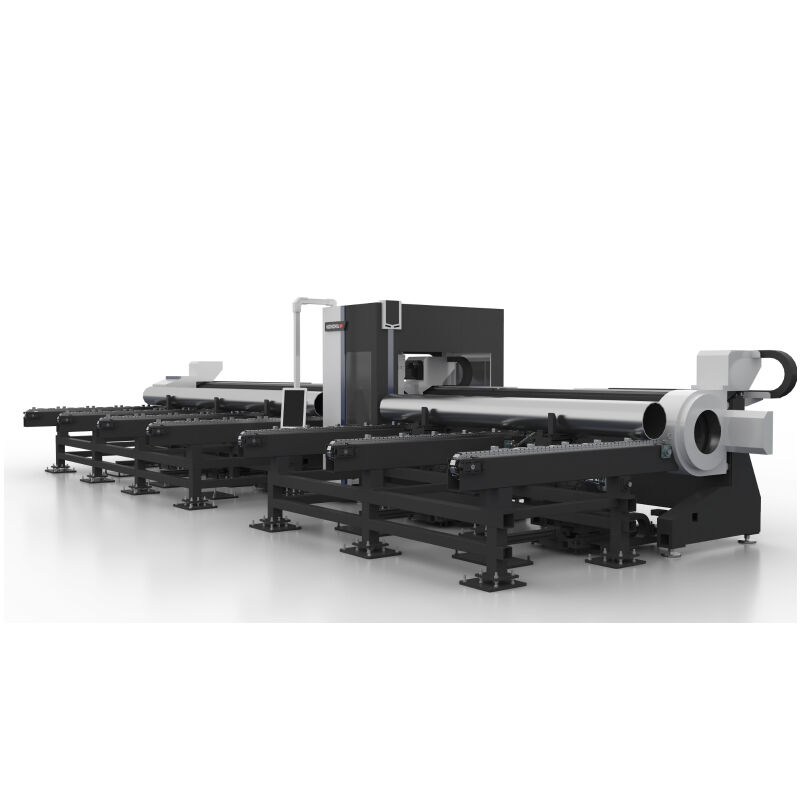

6012SN3 Three-Chuck Tube Laser Cutting Machine

6012SN3 Three-Chuck Tube Laser Cutting Machine

· Single Tube automatic feeding for higher stability
· Three-chuck processing with movable middle chuck for zero tail material
· EtherCAT version supports smooth operation and precise control
· Dust-free cutting area ensures clean workshop environment

Laser power: 1.5kw-30kw

Introduction

Specifications：

Model	6012SN3 - 12085SN3
Working Area	6000 × 6000 × 120mm – 12000 × 12000 × 850mm
Laser Power	1.5kw – 30kw
Laser Source	Raycus / Max / RECI / IPG
Laser Head	BOCI / RAYTOOLS
Motor & Drivers	DELTA / Fuji / Yaskawa
Control System	FSCUT
Positioning Accuracy	±0.03 mm
Re-positioning Accuracy	±0.02 mm
Cutting Speed	80 m/min
Cooling Method	Water Cooling
Gross Weight	5000-20000 kg

Description：

The 6012SN3 Three-Chuck Tube Laser Cutting Machine is designed for industrial metal tube processing, combining high stability, precision, and efficiency. Its advanced three-chuck system allows zero-tail material processing, while the single-Tube automatic feeding ensures smooth and consistent operation. The dust-free cutting area keeps the workspace clean and safe.

Stable Structure & High Precision

The welded bed undergoes annealing, vibration aging, and finishing to eliminate internal stress and ensure long-term rigidity. The high-precision linear guide rails and rack-and-pinion transmission provide smooth and accurate motion for all axes, including the movable middle chuck.

Efficient Tube Processing

The machine supports semi-automatic Tube loading and a professional CNC software system to optimize cutting speed and material utilization. High-speed servo motors and EtherCAT communication guarantee precise, high-speed processing.

Advanced Dust & Smoke Management

The cutting zone is enclosed in a dust-free design, maintaining a clean environment and reducing wear on laser optics. Professional dust extraction systems are optional for even cleaner operation.

Cutting Parameters：

Cutting Samples：

画板 9.jpg

High-Quality Components for Reliable Performance

Laser Source: Raycus / Max / RECI / IPG for stable high-power cutting.
Laser Head: BOCI / RAYTOOLS with capacitive sensor, closed-loop automatic focusing, anti-collision protection.
Motors & Drivers: DELTA / Fuji / Yaskawa for precise and stable motion.
Electrical Components: Schneider, Omron – high performance and safety.
Control System: FSCUT supports CAD/DXF, multi-file processing, one-stroke flying cuts, and advanced Tube cutting functions.
Cooling System: Water chiller protects both laser head and source with over-temperature alarm.
Automatic Lubrication: Programmable frequency and quantity for extended machine life.

1 (3).png 1 (4).png

Specifications and Performance

The 6012SN3 supports working areas from 6000 × 6000 × 120 mm to 12000 × 12000 × 850 mm, with laser power up to 30 kw. The three-chuck system, gantry double-drive structure, and high-speed servo motors deliver stable, precise, and high-speed cutting of metal tubes with thicknesses up to 25 mm.

Applications and Versatility

Materials:Stainless Steel, Carbon Steel, Aluminum, Brass, Copper, Galvanized Tubes, Alloy Plates

Industries: Aerospace, Engineering Machinery, Electronics, Automotive, Metallurgical Equipment, Household Appliances, Advertising & Decoration

Applications：

High-volume Tube cutting with zero tail material
Fabrication of industrial frames, enclosures, and piping components
Production of automotive and aerospace tubular parts
Signage and decorative metalwork
Efficient cutting with minimal material waste

Application Industry Scenario Diagram


Aerospace Industry	Automotive Industry	Furniture & Decoration	Metal Fabrication Machinery

Competitive Advantage:

Three-Chuck Design: Zero tail material, higher efficiency.
Single-Tube Automatic Feeding: Ensures stable, smooth operation.
Gantry Double-Drive Structure: Provides rigidity and precision.
Dust-Free Cutting Area: Keeps the workspace clean.
High-Power Laser Options: 1.5 kw – 30 kw for versatile applications.
Premium Components: Raycus/IPG lasers, BOCI/RAYTOOLS heads, FSCUT control, Schneider/Omron electrical systems.
Advanced CNC Software: Optimized for tube cutting with high precision and speed.
Easy Maintenance: Modular design, access doors, and user-friendly controls.

Quality Inspection & Manufacturing Process：

Pre-Assembly Inspection	Precision Machining	Vibration & Natural Aging
Each machine component undergoes precise measurement of guide rail straightness and geometric accuracy. Altimeters verify linear dimensions to ensure every part meets design standards.	High-speed rough machining removes burrs and excess material, followed by fine processing for smooth, flat surfaces that ensure long-term cutting precision.	Residual internal stress is released through vibration and natural thermal cycles. This process enhances structural rigidity, stability, and dimensional accuracy of the machine bed.
Assembly Process	Welding & Structural Strength	Final Inspection & Testing
Guide rails and gear racks are installed and calibrated by skilled technicians using precision tools, ensuring smooth transmission and stable machine performance.	CO₂ shielded welding guarantees firm, defect-free joints, improving overall frame strength, durability, and cutting stability.	Dynamic performance tests check positioning accuracy, repeatability, and micro displacement precision. Interferometers compensate for any rack errors, ensuring superior cutting accuracy.
