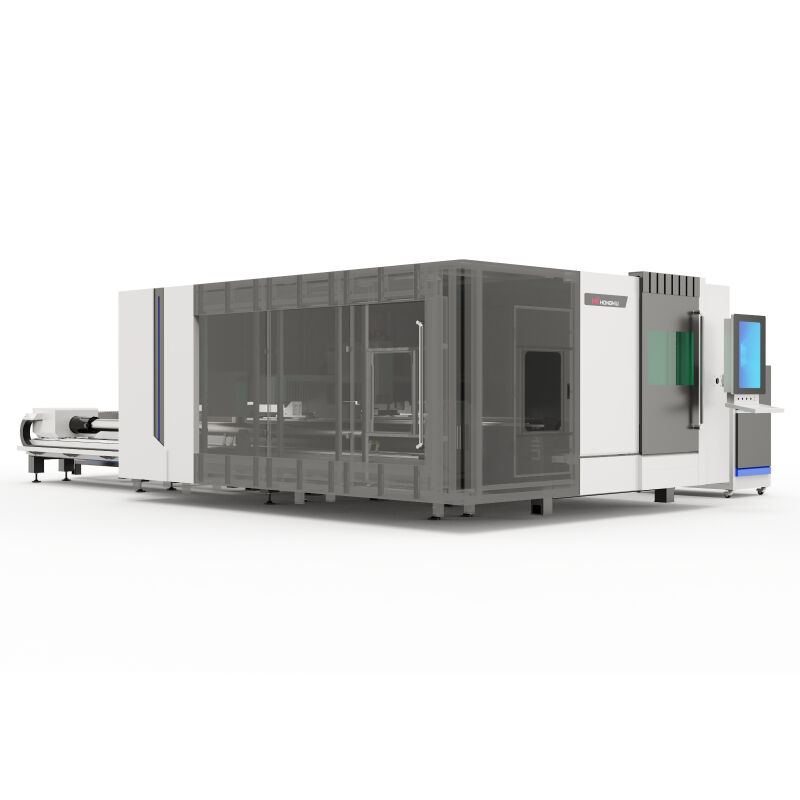

3015GAR Enclosed Exchange Platform Plate and Tube Integrated Fiber Laser Cutting Machine

3015GAR Enclosed Exchange Platform Plate and Tube Integrated Fiber Laser Cutting Machine

· One machine dual-use – intelligent switching between plate and tube cutting without equipment replacement.
· Dual platforms – independent sheet and tube zones to avoid material interference and increase efficiency.
· Cantilever control platform – saves space and provides modern aesthetics.
· Dual air ducts – large aperture, smoke-free cutting workshop.
· Enclosed design – ensures operational safety.

Laser power: 1.5kw-30kw

Introduction

Specifications：

Model	3015GAR
Working Area	3000×1500 mm
Laser Power	1.5–30kw
Tube Chuck Diameter	160 mm
Laser Source	Raycus / Max / RECI / IPG
Laser Head	BOCI / RAYTOOLS
Motor & Drivers	DELTA / Fuji / Yaskawa
Control System	FSCUT
Positioning Accuracy	±0.03 mm
Re-positioning Accuracy	±0.02 mm
Cutting Speed	80 m/min
Cooling Method	Water cooling
Machine Size	9950×4158.5×2254.5 mm
Gross Weight	9500 kg

Description：

Enclosed Exchange Platform Plate and Tube Integrated Fiber Laser Cutting Machine – GAR Series

The GAR Series is designed for industrial enterprises requiring high-power cutting of both sheets and tubes in one machine. Its dual-platform design allows independent operation for plate and tube zones, maximizing efficiency while maintaining precision and safety.

Integrated High-Rigidity Bed & Gantry Structure

The honeycomb carbon steel bed with reinforced beam prevents vibration during cutting. Gantry double-drive structure ensures smooth motion and accurate cutting of thick metal sheets and large-diameter tubes.

Dual Platforms for Efficiency

Independent work zones allow simultaneous plate and tube processing, greatly increasing production throughput.

Advanced Dust & Smoke Management

Dual air duct partition extraction ensures smoke-free operation in active cutting zones while maintaining a clean and safe workshop.

User-Friendly & Efficient Operation

Cantilever control platform saves space, and fully enclosed structure with access doors facilitates maintenance and workflow optimization.

Cutting Parameters：

Cutting Samples：

切割样品 (1).png 切割样品 (2).jpg 切割样品 (3).jpg 切割样品 (4).jpg

High-Quality Components for Reliable Performance

Laser Source: Raycus, Max, RECI, or IPG for high-power cutting.
Laser Head: BOCI / RAYTOOLS with automatic focusing, anti-collision design, and intelligent monitoring.
Motors & Drivers: DELTA, Fuji, or Yaskawa for precise motion and stability.
Electrical Components: Schneider and Omron for reliable and safe operation.
Control System: FSCUT supports CAD/DXF, multi-file processing, and one-stroke flying cuts.
Cooling: Water chiller system protects both laser head and source, with over-temperature alarm.
Automatic Lubrication: Programmable frequency and volume to extend service life.

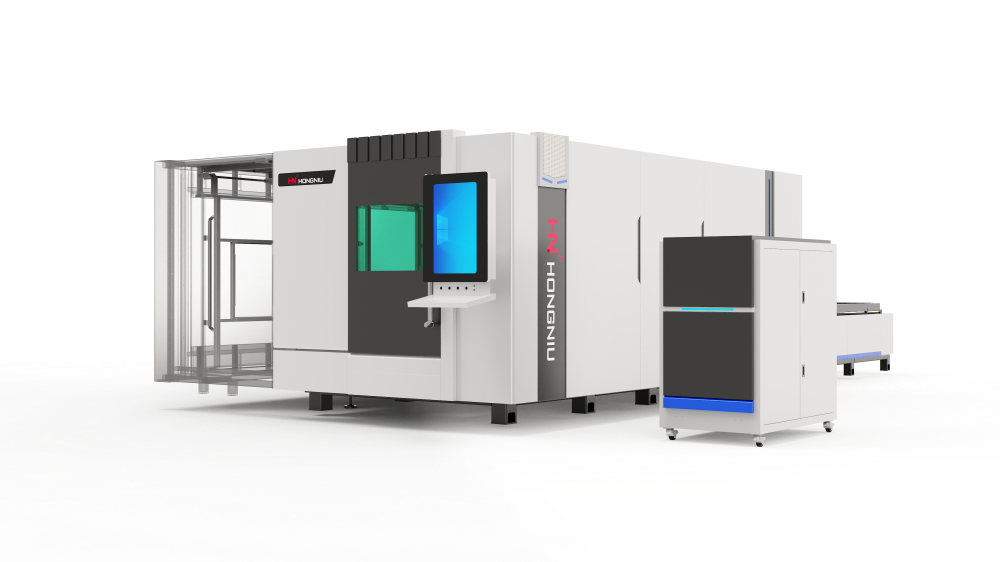

大包围、板管一体、.379.png 大包围、板管一体、.380.png

Specifications and Performance

The GAR Series offers working areas from 3000×1500 mm to 6000×2500 mm, with laser power up to 30kw, capable of cutting sheet thicknesses 0–75 mm and tubes of varying diameters.

Gantry double-drive structure, reinforced beam, and high-speed servo motors ensure stable, precise, and high-speed cutting suitable for heavy-duty industrial production.

Applications and Versatility

Materials:

Stainless Steel, Carbon Steel, Aluminum, Brass, Copper, Galvanized Sheet, Tubes

Industries:

Automotive & Aerospace
Engineering Machinery
Electronics & Home Appliances
Advertising & Decorative Metalwork
Panel Beating & Metallurgical Equipment

Applications：

Dual-use plate and tube cutting
High-volume sheet and tube production
Fabrication of industrial frames, enclosures, and piping components
Signage, decorative panels, and metal artwork
Efficient cutting with minimal material waste

Application Industry Scenario Diagram


Aerospace Industry	Automotive Industry	Furniture & Decoration	Metal Fabrication Machinery

Competitive Advantage:

Dual-Use Machine: Intelligent switching between plate and tube cutting.
Dual Platforms: Maximize throughput and efficiency.
Cantilever Control Platform: Space-saving and ergonomic.
High-Rigidity Bed & Beam: Prevents table vibration during cutting.
Advanced Dust Extraction: Dual air ducts for precise smoke removal.
Enclosed Design: Ensures operational safety and a cleaner workshop.
Laser Power Range: 1.5kw–30kw suitable for diverse materials and thicknesses.
Easy Operation & Maintenance: Optimized layout with access doors.
Premium Components: Raycus/IPG lasers, BOCI/RAYTOOLS heads, FSCUT control, Schneider/Omron systems.
Versatile Material Capability: Cuts sheets and tubes with precision and minimal waste.

Quality Inspection & Manufacturing Process：

Pre-Assembly Inspection	Precision Machining	Vibration & Natural Aging
Each machine component undergoes precise measurement of guide rail straightness and geometric accuracy. Altimeters verify linear dimensions to ensure every part meets design standards.	High-speed rough machining removes burrs and excess material, followed by fine processing for smooth, flat surfaces that ensure long-term cutting precision.	Residual internal stress is released through vibration and natural thermal cycles. This process enhances structural rigidity, stability, and dimensional accuracy of the machine bed.
Assembly Process	Welding & Structural Strength	Final Inspection & Testing
Guide rails and gear racks are installed and calibrated by skilled technicians using precision tools, ensuring smooth transmission and stable machine performance.	CO₂ shielded welding guarantees firm, defect-free joints, improving overall frame strength, durability, and cutting stability.	Dynamic performance tests check positioning accuracy, repeatability, and micro displacement precision. Interferometers compensate for any rack errors, ensuring superior cutting accuracy.
