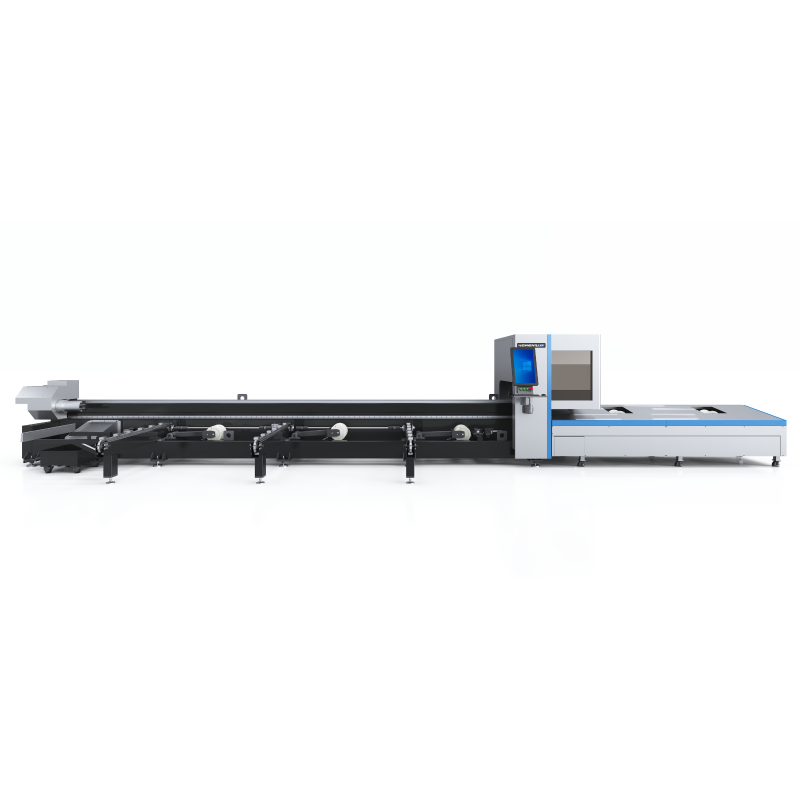

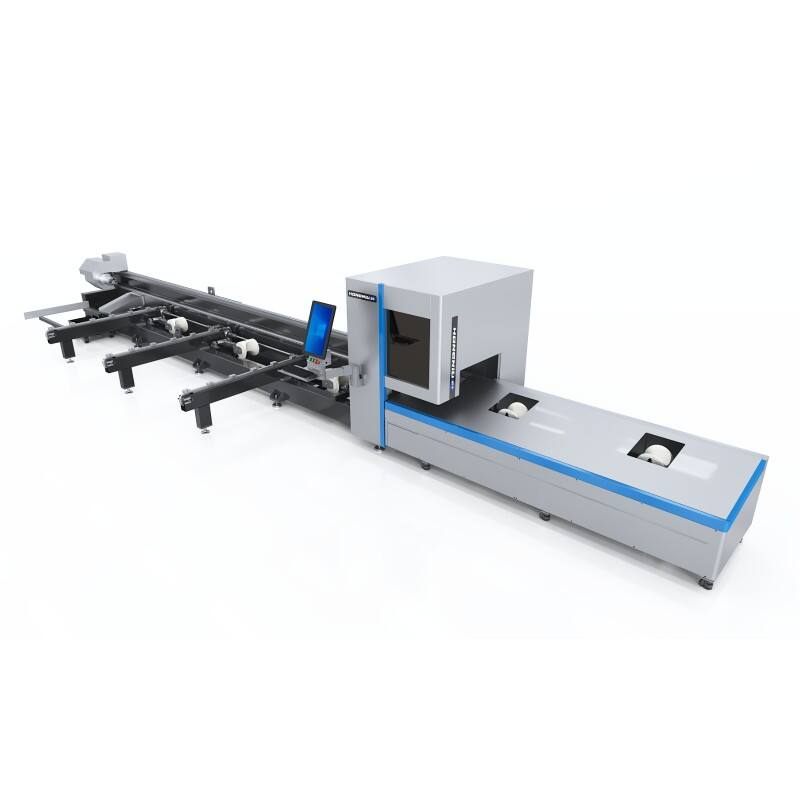

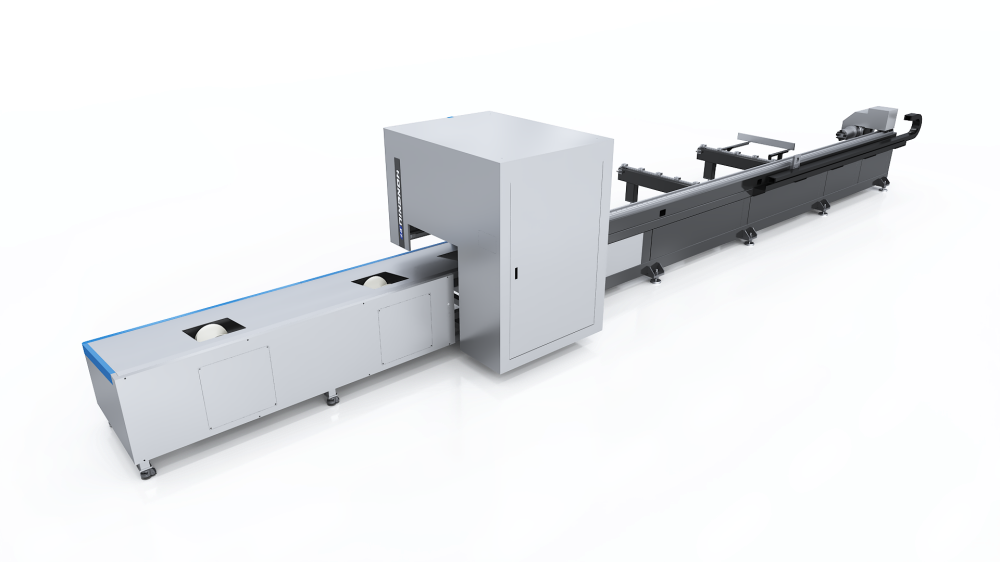

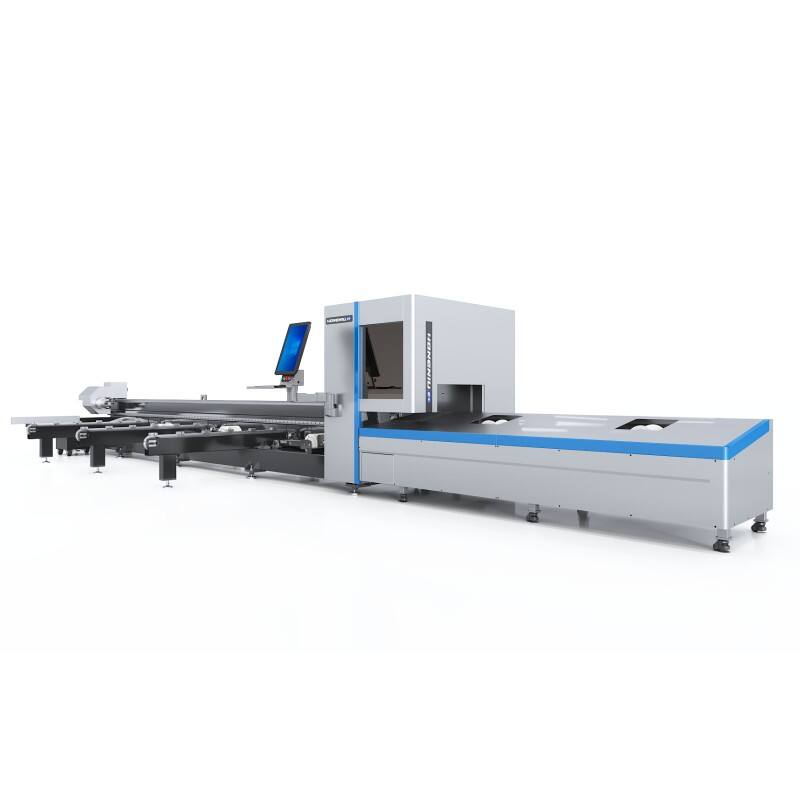

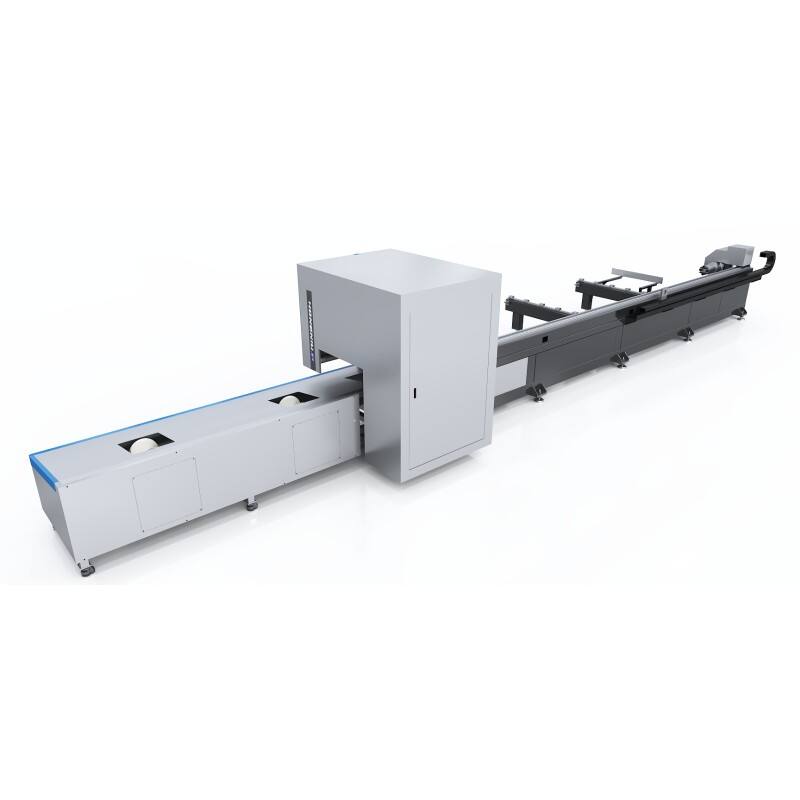

6012SN Two-Chuck Horizontal Tube Cutting Machine With Semi-Automatic Loading

6012SN Two-Chuck Horizontal Tube Cutting Machine With Semi-Automatic Loading

· Dual-chuck horizontal design – ensures high-precision and stable cutting for Tubes and sheets.
· Semi-automatic loading – reduces labor cost and supports long workpiece processing.
· Advanced dust-free system – keeps the cutting area clean and smoke-free.
· Heavy-duty honeycomb bed – annealed and vibration-treated for long-term stability.

Laser power: 1.5kw-12kw

Introduction

Specifications：

Model	6012SN / 6016SN / 6022SN / 6023SN / 6035SN
Working Area	6000 × 120 mm / 6000 × 160 mm / 6000 × 220 mm / 6000 × 230 mm / 6000 × 350 mm
Laser Power	1.5kw – 12kw
Tube Chuck Diameter	160 mm / 160 mm / 220 mm / 230 mm / 350 mm
Laser Source	Raycus / Max / RECI / IPG
Laser Head	BOCI / RAYTOOLS
Motor & Drivers	DELTA / Fuji / Yaskawa
Control System	FSCUT
Positioning Accuracy	±0.03 mm
Re-positioning Accuracy	±0.02 mm
Cutting Speed	80 m/min
Cooling Method	Water cooling
Machine Size	11800 × 2685 × 2600 mm
Gross Weight	5500 kg

Description：

6012SN Two-Chuck Horizontal Tube Cutting Machine With Semi-Automatic Loading

The 6012SN is designed for high-precision Tube and tube cutting with enhanced efficiency. Its dual-chuck horizontal design ensures stable operation, while the semi-automatic loading system reduces labor requirements and supports long workpiece processing. The machine features a dust-free cutting area and a heavy-duty honeycomb bed for long-term stability.

Heavy-Duty Bed & Gantry Structure

The honeycomb carbon bed is annealed and vibration-treated to prevent deformation, while the high-strength gantry beam ensures smooth motion and precise cutting.

Dual-Chuck & Semi-Automatic Loading

Two horizontal chucks allow simultaneous processing of Tubes, and the semi-automatic loading system simplifies material handling and reduces downtime.

Advanced Dust & Smoke Management

The cutting area is enclosed in a professional dust-free design. Air ducts and optional dust collectors maintain a smoke-free, clean workshop environment.

User-Friendly & Efficient Operation

Semi-automatic loading, easy-to-access maintenance doors, and an optimized layout for the control system improve operator efficiency.

Cutting Parameters：

Cutting Samples：

画板 9.jpg

High-Quality Components for Reliable Performance

Laser Source: Raycus, Max, RECI, or IPG for stable and high-power cutting.
Laser Head: BOCI / RAYTOOLS with auto-focus, anti-collision, and intelligent monitoring.
Motors & Drivers: DELTA, Fuji, or Yaskawa for precise motion and stability.
Electrical Components: Schneider and Omron for reliable operation.
Control System: FSCUT supports CAD/DXF, multi-file processing, and one-stroke flying cuts.
Cooling: Water chiller system protects the laser head and source with over-temperature alarm.
Automatic Lubrication: Programmable frequency and volume for extended service life.

1 (1).png 1 (3).png

Specifications and Performance

The 6012SN supports working areas from 6000 × 120 mm to 6000 × 350 mm, laser power 1.5kw–12kw, and can handle Tube cutting up to 35 mm. Gantry double-drive structure, reinforced bed, and high-speed servo motors ensure stable, precise, and high-speed cutting suitable for industrial production.

Applications and Versatility

Materials:

Stainless Steel, Carbon Steel, Aluminum, Brass, Copper, Galvanized Tubes

Industries:

Automotive & Aerospace
Engineering Machinery
Electronics & Home Appliances
Advertising & Decorative Metalwork
Panel Beating & Metallurgical Equipment

Applications：

Dual-chuck Tube cutting for high-volume production
Processing of long workpieces with semi-automatic loading
Fabrication of industrial piping, frames, and enclosures
Signage, decorative metal panels, and custom metalwork
Efficient cutting with minimal material waste

Application Industry Scenario Diagram


Aerospace Industry	Automotive Industry	Furniture & Decoration	Metal Fabrication Machinery

Competitive Advantage:

Dual-Chuck Horizontal Design: Stable and high-precision cutting
Semi-Automatic Loading: Reduces labor and increases throughput
Heavy-Duty Honeycomb Bed: Ensures rigidity and long-term stability
Dust-Free Cutting Area: Keeps the workshop clean and smoke-free
Wide Laser Power Range: 1.5kw–12kw suitable for various materials
Premium Components: Raycus/IPG lasers, BOCI/RAYTOOLS heads, FSCUT control, Schneider/Omron systems
Easy Maintenance: Accessible doors and optimized control layout
Versatile Material Capability: Cuts Tubes and tubes with minimal waste

Quality Inspection & Manufacturing Process：

Pre-Assembly Inspection	Precision Machining	Vibration & Natural Aging
Each machine component undergoes precise measurement of guide rail straightness and geometric accuracy. Altimeters verify linear dimensions to ensure every part meets design standards.	High-speed rough machining removes burrs and excess material, followed by fine processing for smooth, flat surfaces that ensure long-term cutting precision.	Residual internal stress is released through vibration and natural thermal cycles. This process enhances structural rigidity, stability, and dimensional accuracy of the machine bed.
Assembly Process	Welding & Structural Strength	Final Inspection & Testing
Guide rails and gear racks are installed and calibrated by skilled technicians using precision tools, ensuring smooth transmission and stable machine performance.	CO₂ shielded welding guarantees firm, defect-free joints, improving overall frame strength, durability, and cutting stability.	Dynamic performance tests check positioning accuracy, repeatability, and micro displacement precision. Interferometers compensate for any rack errors, ensuring superior cutting accuracy.
