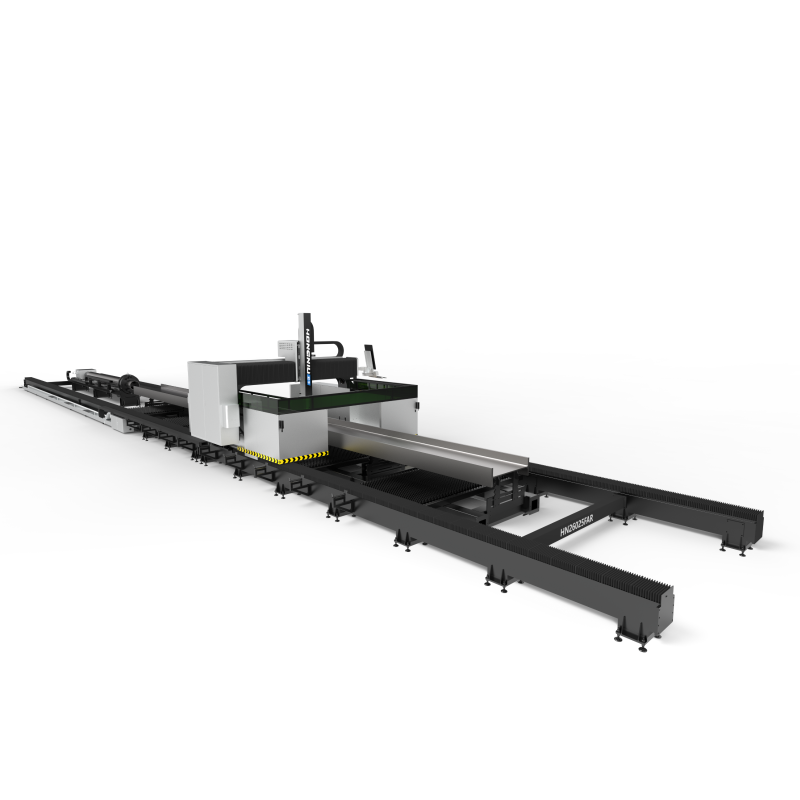

Three-Dimensional Seven-Axis Fiber Laser Cutting Machine

Three-Dimensional Seven-Axis Fiber Laser Cutting Machine

· Seven-axis linkage system designed for complex 3D cutting of large steel sections
· Compact footprint with high efficiency – an optimal solution for the beam cutting market
· Chuck-free processing for H-beams, I-beams, angle steel, channel steel, and T-beams
· Multi-process integration – cutting, hole opening, beveling, marking, and root clearing in one setup
· Optional cantilever and semi-automatic feeding configurations for flexible factory layouts

Laser power: 12kw-60kw

Introduction

Specifications：

Model	14032FAR
Working Area	14000 × 3200 mm - 26000 × 3200 mm
Laser Power	12kw – 60kw
Laser Source	Raycus / Max / RECI / IPG
Laser Head	BOCI / RAYTOOLS
Motor & Drivers	DELTA / Fuji / Yaskawa
Control System	FSCUT
Positioning Accuracy	±0.15 mm
Re-positioning Accuracy	±0.15 mm
Cutting Speed	80 m/min
Cutting Thickness	0–50 mm
Cooling Method	Water cooling
Power Supply	220V 1P 50HZ / 380V 3P 50HZ
Gross Weight	25,000 kg

Description：

The Three-Dimensional Seven-Axis Fiber Laser Cutting Machine (FAR Series) is a high-end CNC solution developed for advanced beam and profile processing. It integrates fiber laser cutting, precision mechanical structure, intelligent sensing, and seven-axis CNC linkage technology.

Designed specifically for large steel sections, the FAR series enables high-precision 3D cutting without chucks, delivering excellent stability and forming accuracy. It supports one-time completion of complex processes such as hole cutting, beveling, locking ports, marking, and aerial root clearing.

With optional semi-automatic feeding and cantilever structures, this machine adapts easily to different factory sizes while maintaining high productivity and low operating costs.

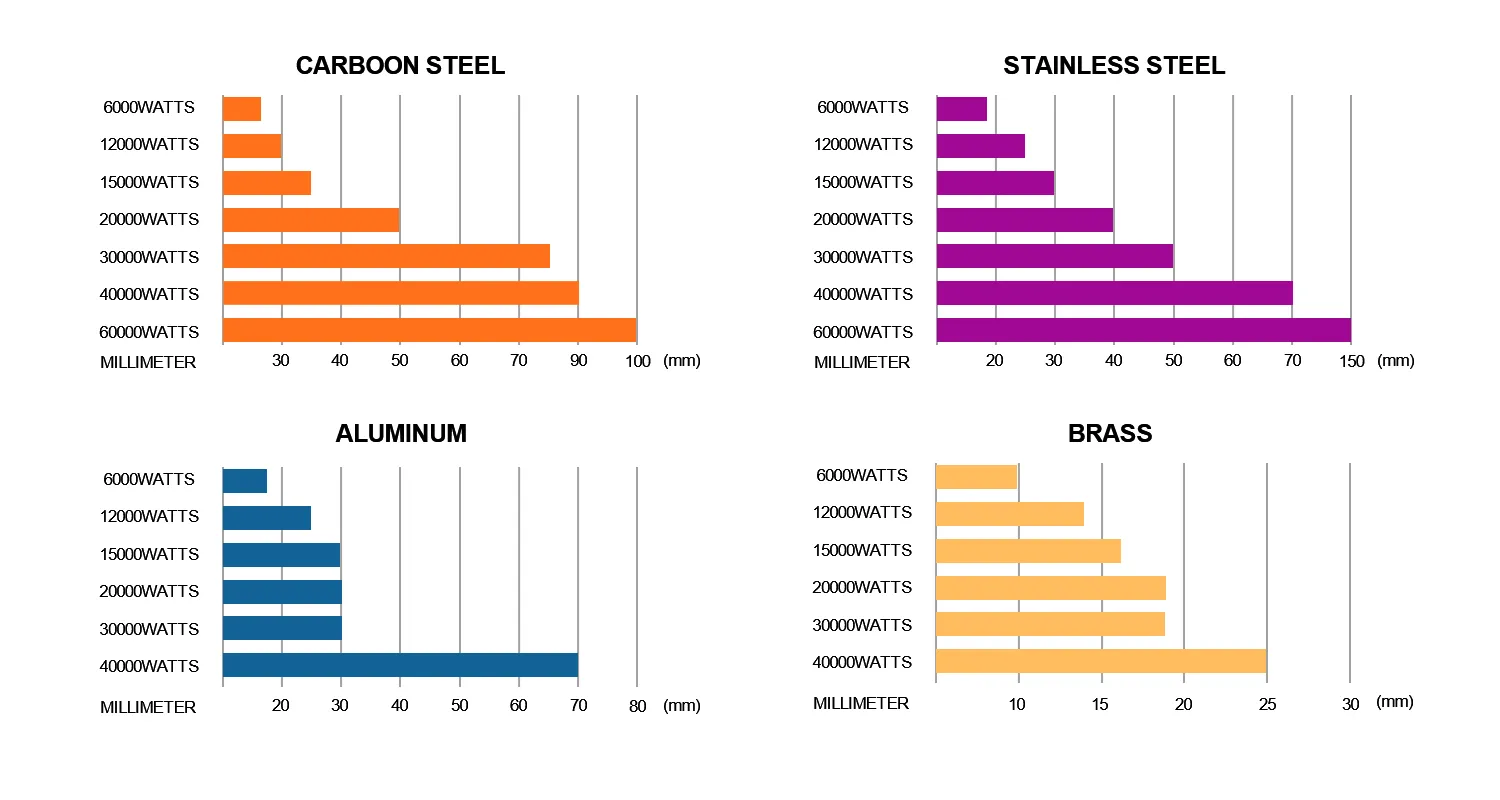

Cutting Parameters：

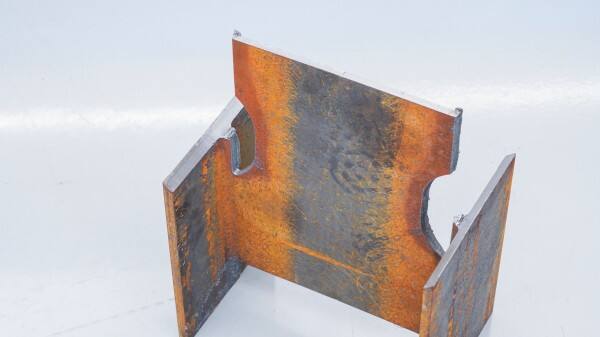

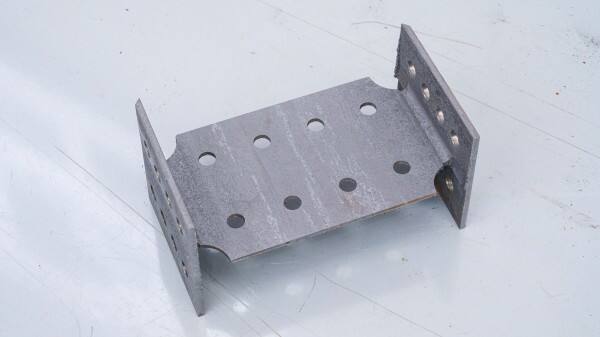

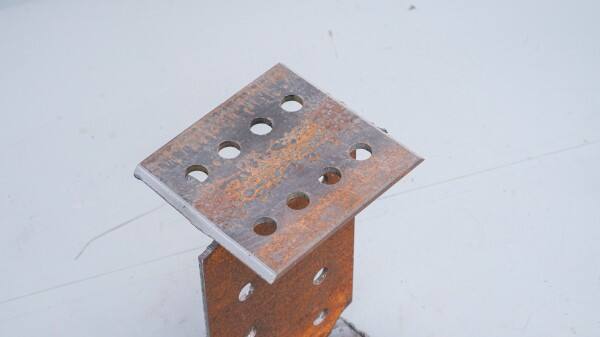

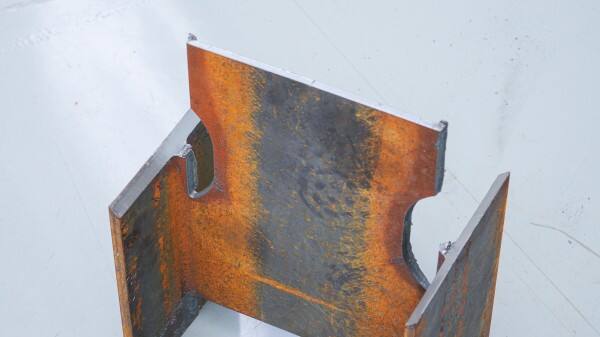

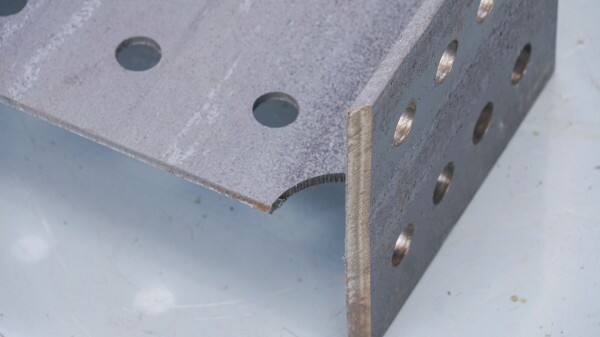

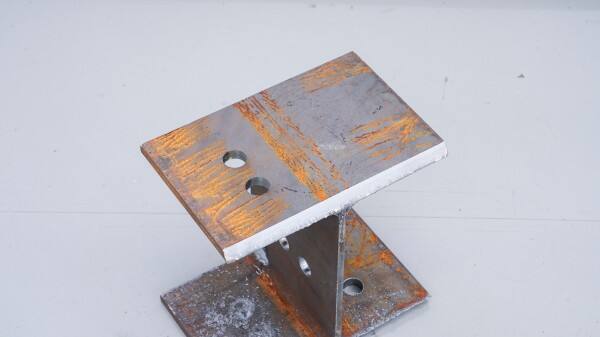

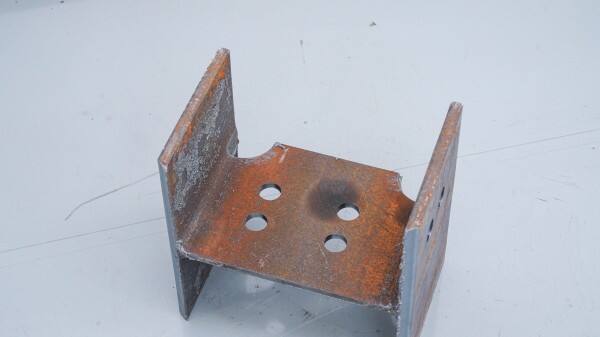

Cutting Samples：

DSC05747(1).jpg DSC05748(1).jpg DSC05750(1).jpg DSC05753(1).jpg DSC05755(1).jpg DSC05760(1).jpg DSC05762(1).jpg DSC05766(1).jpg

High-Quality Components for Reliable Performance

Laser Source: Raycus, Max, RECI, or IPG for stable high-power output
Laser Head: BOCI / RAYTOOLS with automatic focusing, anti-collision protection, and intelligent monitoring
Motors & Drivers: DELTA, Fuji, or Yaskawa for high-speed, high-torque motion control
Electrical Components: Schneider and Omron for long-term reliability
Control System: FSCUT seven-axis CNC system supporting CAD/DXF, layout optimization, and flying cuts
Cooling System: Industrial water chiller with temperature alarm protection
Automatic Lubrication: Fully automatic system to extend service life and reduce maintenance

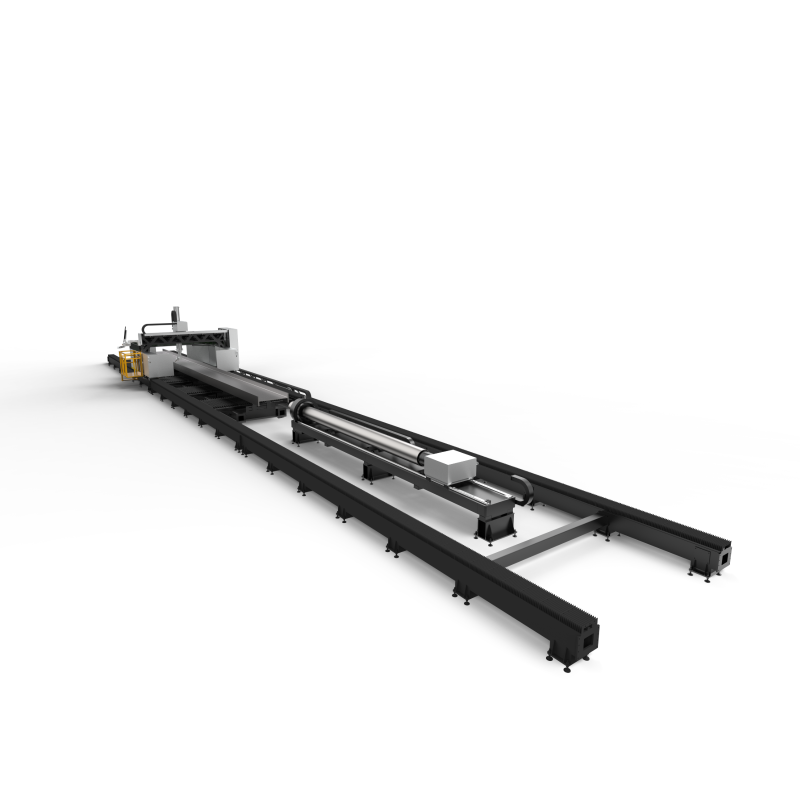

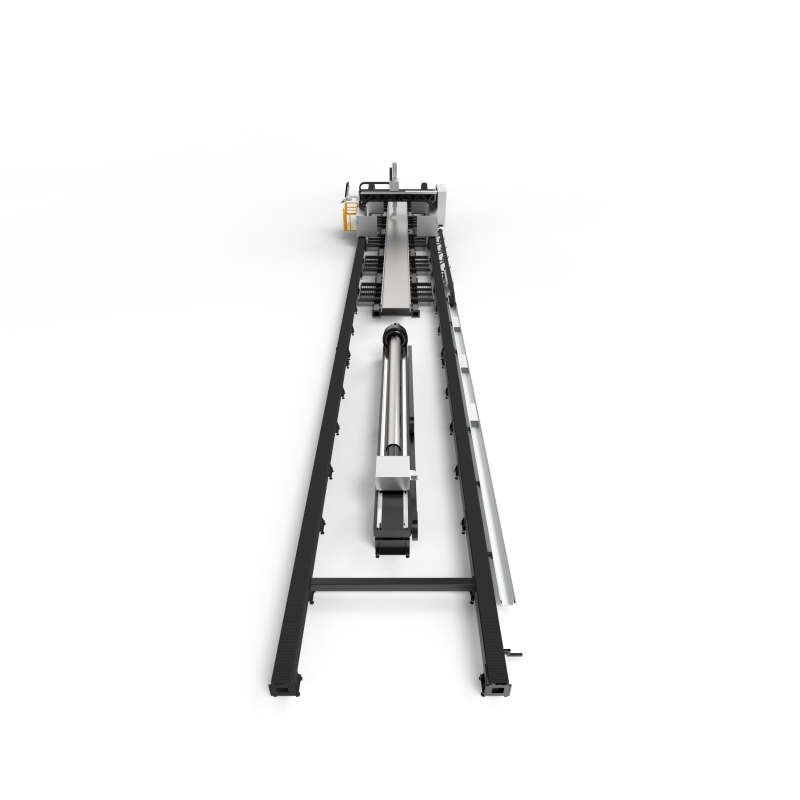

三维七轴1.png 三维七轴2.png

Specifications and Performance

The FAR series provides ultra-large working areas up to 26000 × 3200 mm with laser power up to 60kw, enabling efficient cutting of steel thicknesses up to 50 mm.

The gantry double-drive transmission, stress-relieved honeycomb bed structure, and high-rigidity beam ensure excellent dynamic performance, long-term accuracy, and smooth operation during complex seven-axis movements.

Applications and Versatility

Applicable Materials:

Carbon Steel
Stainless Steel
Alloy Steel
Galvanized Steel
Aluminum and Other Metal Profiles

Applicable Sections & Tubes:

H-beams, I-beams, T-beams
Channel steel, angle steel
Round tubes and square tubes
Special-shaped steel profiles

Applications：

Seven-axis 3D cutting of large steel sections
Integrated processing of holes, bevels, and connection nodes
Fabrication of structural components for heavy machinery
Precision cutting of profiles, plates, and tubes
High-efficiency processing for complex spatial steel structures

Application Industry Scenario Diagram


Aerospace Industry	Automotive Industry	Furniture & Decoration	Metal Fabrication Machinery

Competitive Advantage:

Seven-Axis 3D Cutting Technology: Enables complex spatial cutting with high precision
Compact Footprint: Ideal for factories with limited floor space
Chuck-Free Design: Suitable for large and irregular steel sections
Multi-Process Integration: Cutting, beveling, marking, and hole processing in one setup
Flexible Configuration: Optional cantilever structure and semi-automatic feeding
Wide Power Range: 12kw–60kw for medium to heavy-duty applications
Heavy-Duty Structure: Stress-relieved honeycomb bed and gantry double-drive system
Premium Components: IPG/Raycus lasers, BOCI/RAYTOOLS heads, FSCUT CNC, Schneider electronics

Quality Inspection & Manufacturing Process：

Pre-Assembly Inspection	Precision Machining	Vibration & Natural Aging
Each machine component undergoes precise measurement of guide rail straightness and geometric accuracy. Altimeters verify linear dimensions to ensure every part meets design standards.	High-speed rough machining removes burrs and excess material, followed by fine processing for smooth, flat surfaces that ensure long-term cutting precision.	Residual internal stress is released through vibration and natural thermal cycles. This process enhances structural rigidity, stability, and dimensional accuracy of the machine bed.
Assembly Process	Welding & Structural Strength	Final Inspection & Testing
Guide rails and gear racks are installed and calibrated by skilled technicians using precision tools, ensuring smooth transmission and stable machine performance.	CO₂ shielded welding guarantees firm, defect-free joints, improving overall frame strength, durability, and cutting stability.	Dynamic performance tests check positioning accuracy, repeatability, and micro displacement precision. Interferometers compensate for any rack errors, ensuring superior cutting accuracy.
