6012R Two-chucks Fiber Laser Tube Cutting Machine

6012R Two-chucks Fiber Laser Tube Cutting Machine

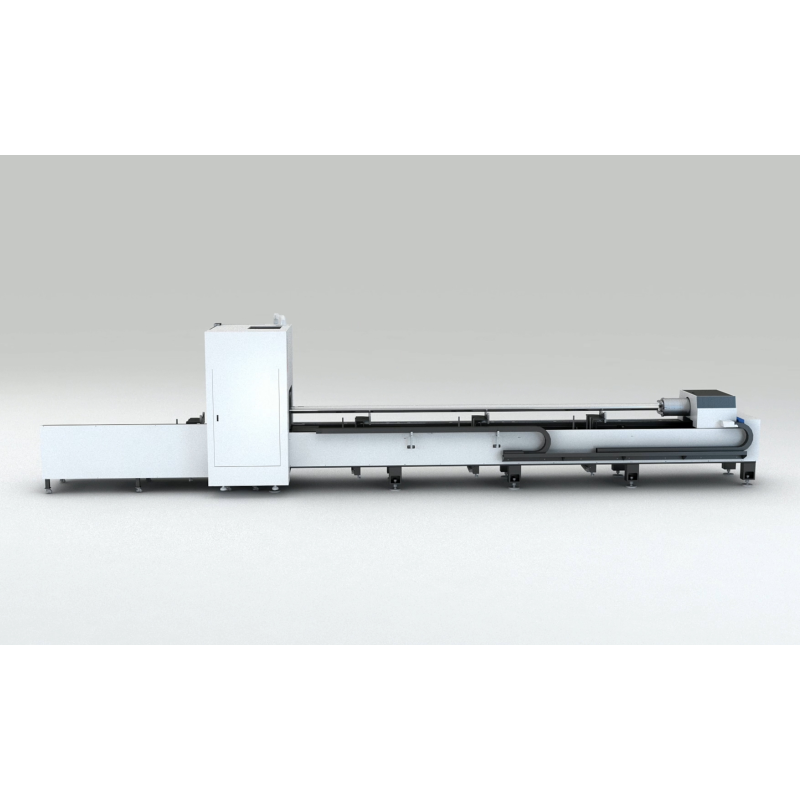

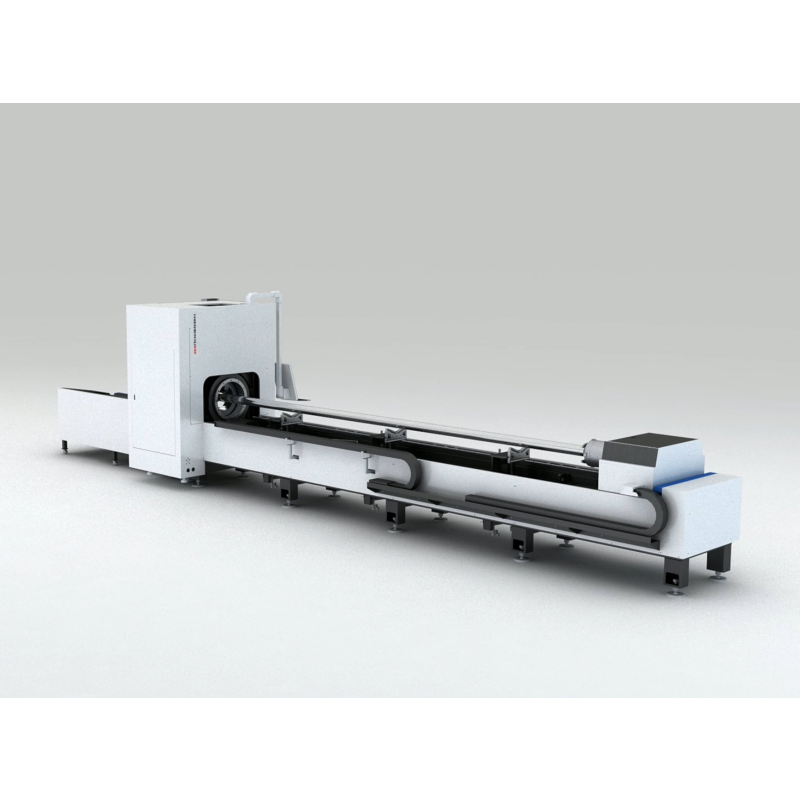

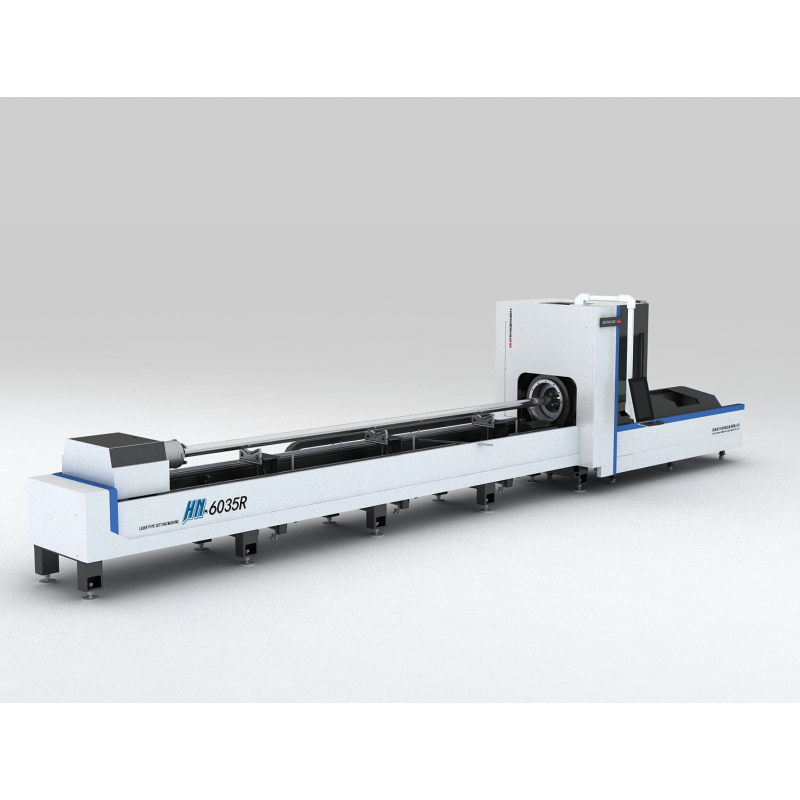

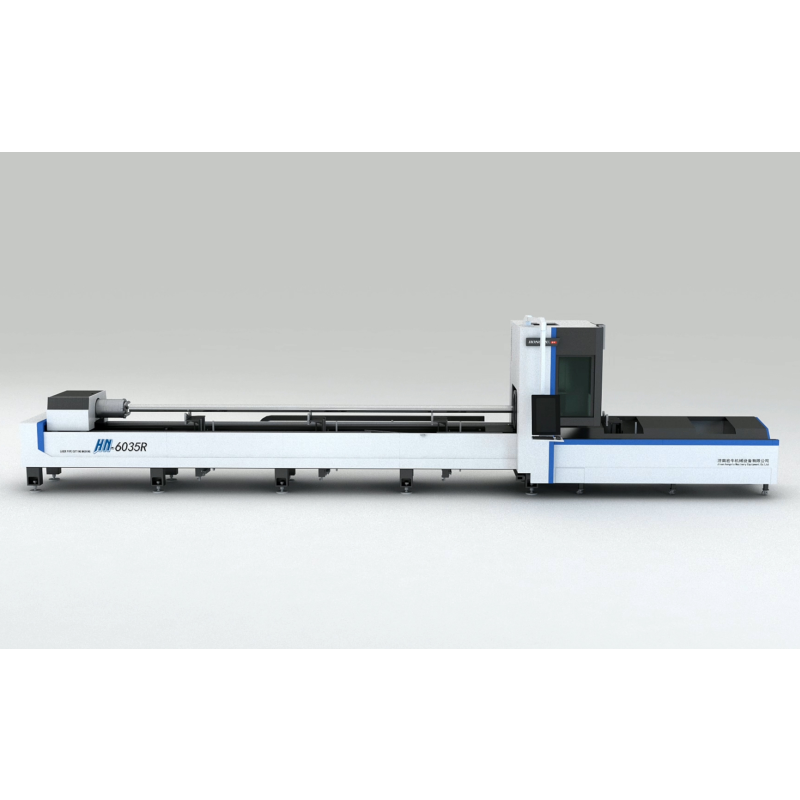

· Two-chuck horizontal standard design – ensures high precision and stability for Tube processing.
· Pneumatic Tube support rollers – smooth feeding and support for long or heavy tubes.
· Optional unloading support platform – facilitates long product processing.
· Dust-free cutting area – built-in dust extraction system for smoke-free operation.

Laser power: 1.5kw-12kw

Introduction

Specifications：

Model	6012R / 6016R / 6022R / 6023R / 6035R
Working Area	6000×120 mm / 6000×160 mm / 6000×220 mm / 6000×230 mm / 6000×350 mm
Laser Power	1.5kw – 12kw
Tube Chuck Diameter	120 mm / 160 mm / 220 mm / 230 mm / 350 mm
Laser Source	Raycus / Max / RECI / IPG
Laser Head	BOCI / RAYTOOLS
Motor & Drivers	DELTA / Fuji / Yaskawa
Control System	FSCUT
Positioning Accuracy	±0.03 mm
Re-positioning Accuracy	±0.02 mm
Cutting Speed	80 m/min
Cooling Method	Water Cooling
Machine Size	11369×2435.9×2469 mm
Gross Weight	4500 – 5000 kg

Description：

Two-chucks Fiber Laser Tube Cutting Machine – R Series

The R Series is designed for high-precision Tube and tube cutting in industrial applications. Its two-chuck horizontal configuration, combined with pneumatic support rollers, ensures stable positioning and smooth rotation for long and heavy tubes. The optional unloading support platform allows efficient handling of long materials, while the built-in dust extraction system ensures a clean, smoke-free environment.

Integrated High-Precision Bed & Gantry Structure

The honeycomb carbon steel bed with reinforced beam provides high rigidity and prevents vibration during cutting. The gantry double-drive structure ensures smooth motion and precise cutting performance.

Efficient & Flexible Operation

Two-chuck design allows continuous cutting and easy material loading/unloading. The machine supports a wide range of tube diameters and wall thicknesses, increasing versatility and productivity.

Advanced Dust & Smoke Management

Built-in dust extraction air ducts ensure the cutting area remains smoke-free, protecting the laser optics and maintaining workshop cleanliness.

Cutting Parameters：

Cutting Samples：

画板 9.jpg

High-Quality Components for Reliable Performance

Laser Source: Raycus, Max, RECI, or IPG for stable and high-power cutting.
Laser Head: BOCI / RAYTOOLS with auto-focus, anti-collision, and intelligent monitoring.
Motors & Drivers: DELTA, Fuji, or Yaskawa for precise motion and stability.
Electrical Components: Schneider and Omron for reliable operation.
Control System: FSCUT supports CAD/DXF, multi-file processing, and one-stroke flying cuts.
Cooling: Water chiller system protects the laser head and source with over-temperature alarm.
Automatic Lubrication: Programmable frequency and volume for extended service life.

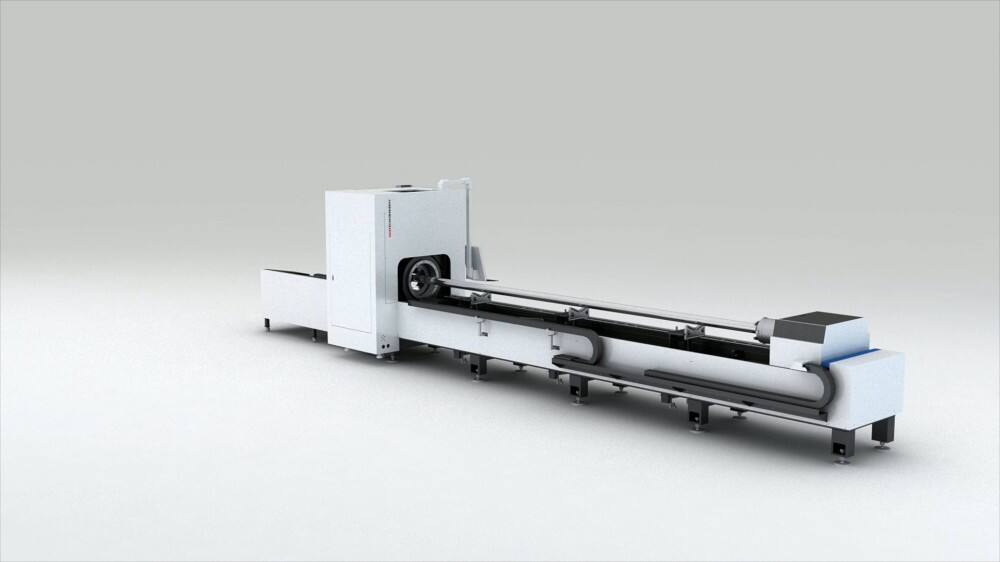

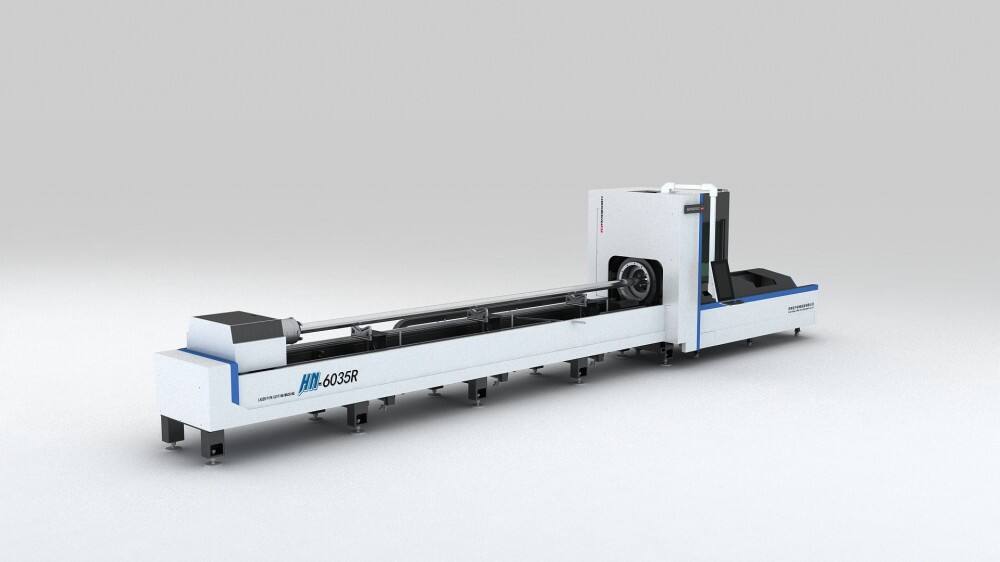

1 (1).jpg 1 (3).jpg

Specifications and Performance

The R Series supports working areas up to 6000×350 mm, laser power from 1.5kw to 12kw, and Tube diameters from 120 mm to 350 mm. With gantry double-drive structure, high-speed servo motors, and reinforced bed, it delivers stable, precise, and high-speed cutting suitable for industrial production.

Applications and Versatility

Materials:

Stainless Steel, Carbon Steel, Aluminum, Brass, Copper, Galvanized Tubes

Industries:

Automotive & Aerospace
Engineering Machinery
Electronics & Home Appliances
Advertising & Decorative Metalwork
Panel Beating & Metallurgical Equipment

Applications：

High-volume Tube and tube cutting
Fabrication of industrial frames, enclosures, and piping components
Production of automotive and aerospace components
Signage, decorative metal panels, and metal artwork
Efficient cutting with minimal material waste

Application Industry Scenario Diagram


Aerospace Industry	Automotive Industry	Furniture & Decoration	Metal Fabrication Machinery

Competitive Advantage:

Two-Chuck Horizontal Design: Ensures precision and stability.
Pneumatic Support Rollers: Smooth feeding and reduced bending for long Tubes.
Optional Unloading Support: Facilitates long product processing.
Dust-Free Cutting Area: Built-in dust extraction protects optics and maintains cleanliness.
High-Speed, High-Precision Cutting: Gantry double-drive structure and high-speed servo motors.
Versatile Laser Power: 1.5kw–12kw suitable for different Tube diameters and thicknesses.
Premium Components: Raycus/IPG lasers, BOCI/RAYTOOLS heads, FSCUT control, Schneider/Omron systems.

Quality Inspection & Manufacturing Process：

Pre-Assembly Inspection	Precision Machining	Vibration & Natural Aging
Each machine component undergoes precise measurement of guide rail straightness and geometric accuracy. Altimeters verify linear dimensions to ensure every part meets design standards.	High-speed rough machining removes burrs and excess material, followed by fine processing for smooth, flat surfaces that ensure long-term cutting precision.	Residual internal stress is released through vibration and natural thermal cycles. This process enhances structural rigidity, stability, and dimensional accuracy of the machine bed.
Assembly Process	Welding & Structural Strength	Final Inspection & Testing
Guide rails and gear racks are installed and calibrated by skilled technicians using precision tools, ensuring smooth transmission and stable machine performance.	CO₂ shielded welding guarantees firm, defect-free joints, improving overall frame strength, durability, and cutting stability.	Dynamic performance tests check positioning accuracy, repeatability, and micro displacement precision. Interferometers compensate for any rack errors, ensuring superior cutting accuracy.
